Band saw / for metals / for pipes / with cooling system
CE 600Hx600W GY4260 Zhejiang Weiye Sawing Machine Co., Ltd

Characteristics

  • Technology:

    band

  • Treated material:

    for metals

  • Applications:

    for pipes

  • Other characteristics:

    with cooling system, variable-speed, with hydraulic vise, high-performance, CE, with roller conveyor, gantry type, double-column, horizontal, semi-automatic

  • Round piece diameter:

    Min.: 0 mm

    Max.: 600 mm

Description

Features

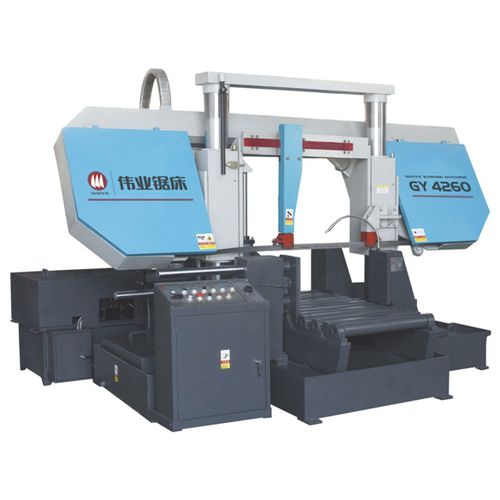

Adopts oversized round columns for maximum amount of support to the saw frame. The cross link on top adds to great structural strength.The rigid dual columns with large diameter guide the saw frame for a more powerful, smooth and accurate cutting. Cutting force and feed rate are applied evenly from top to bottom of the cut.
Guide block system adopted to lengthen the service life of blade
power roller table feeding
Variable speed controlled by inverter

Option
idle roller conveyor
laser beam
hydraulic shuttle table feeding
top vice
chip conveyor


Specification
Model GY4260
Capacity(mm) ●600 ■600×600
Blade Speed(m/min) 20、40、60
Blade Size(mm) 6600×41×1.3
Main Motor 5.5KW
Hydraulic Motor 1.5KW
Coolant Motor 120W
Floor Space(LxWxH)(mm) 3200×2500×2000mm
