Band sawing machine / for metals / for tubes / for sheet metal
Zhejiang Weiye Sawing Machine Co., Ltd
for tubes, for sheet metal
with cooling system, precision, automatic, PLC-controlled
Round piece diameter:
Min.: 0 mm
Max.: 0 mm

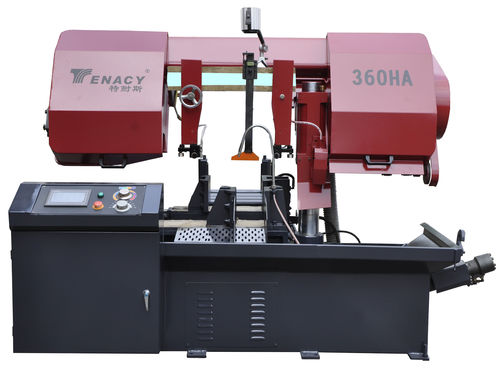

WY360HA type designed and finished by WEIYE SAWS, suits straight cutting metallic materials with high performance, capacity 360mm of outer diameter and features as follows:
Blade Speed(m/min) 20~70
Blade Size(mm) 4420*34 mm
Main drive 4KW
Optimized machine structure
Main drive adopts worm gear box and belt pulley. Optional helical gear box
Carbide guide kit for the saw guides to lengthen the service life of blade
Hydraulic indexing 400mm each time, repeatable feed in for long materials.Optional roller conveyor
support the material handling.
Adopts linear scale for the measurement, high precision.
Hydraulic workpiece clamping. bundle clamps included.
Hydraulic feed rate and back pressure control through valves, variable blade speed provides by the belt pulley. Optional inverter for variable cutting speed 20-80 Mpm.
Material feed rate display from the touch screen.
Adopts PLC, HMI, console to ensure fully automatic cutting process, with easy and friendly interface.
Two choices for automatic mode, single cycle and continuous cycle, easy access.
hydraulic band tighten
powered wire brush and chip auger for chip removal, with high efficiency
Safety protection device:
Safety cover check device enables cover of saw wheels opened shut off
Band check device enables breakage found shut off
Electric cabinet door check device enables door of electric cabinet opened shut off
Main parts adopts famous brand from China
