dynamic mixer / batch / for liquids / for the food industry



  • Technology:


  • Batch/continuous:


  • Application:

    for liquids

  • Application domain:

    for the food industry

  • Other characteristics:

    stainless steel


High Speed super-fine emulsifying tank is the most advanced blending equipment in the fields of dairy products, beverages, fruit juice and foods etc. When the high-speed super-fine emulsification paddle works, it throws the materials in the center of rotor to stator at a high speed, then through teeth clearance oof stator and shearing, collision and crushing between rotor and stator, the super-fine emulsification is realized. Therefore, it is an integrated equipment comprising multi-function such as blending , emulsifying, homogenizing, solving and smashing etc.

Mixing tank is designed,manufactured and inspected in accordance with the pressure vessel standard (GB150-2011) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009), strictly meeting GMP certificate requirements.

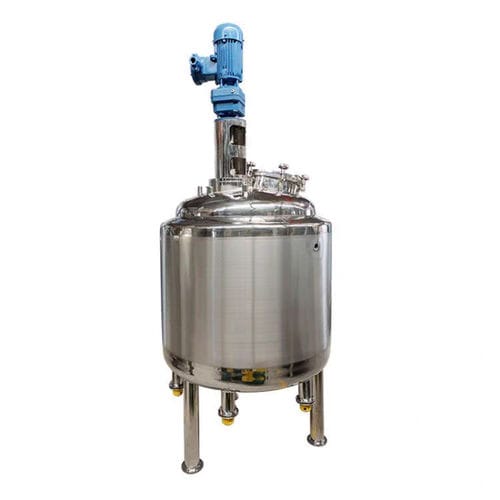

The mixing tank is a vertical tank in which the agitator mixers the material to meet to the technical standard.

The mixing tank adopts vetical circular tanks, both of top and bottom are standard oval and torispherical head. Transition section in tank uses circular are transition, without dead corner,easy to clean. Single layer, double layer(insulation for tank and bottom head) or Jacket(tank and bottom head have jacket and insulation) is equipped with mechanical stirring according to customers’ requirement.
