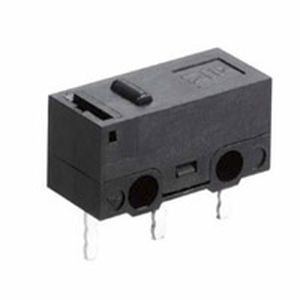

Single-pole micro-switch DF3 serieswaterproofmomentaryelectromechanical
Add to favorites
Compare this product
Characteristics
- Number of poles
- single-pole
- Protection level
- waterproof
- Other characteristics
- momentary, electromechanical
- Primary current
5 A
- Voltage
Max.: 250 V
Min.: 125 V
Description
Operating Frequency (mechanical).....120 operations / mim
Operating Frequency (electrical).....3A~5A-10~30 operations / mim
Contact Resistance (initial).....100m Ω (Max.)
Insulation Resistance (at 500VDC).....100M Ω (Min.)
Dielectric Strength (50-60Hz).....1500VAC RMS
Storage Temperature.....-25℃ to 85 ℃
Storage Humidity.....At 40 ℃,Max. 85% RH (Max.)
Service Life (mechanical).....Min. 5000000 operations
Service Life (electrical).....3A~5A-Min. 10000 operations
Application：
Mouses,Joysticks,Small home appliances,Central heating control
