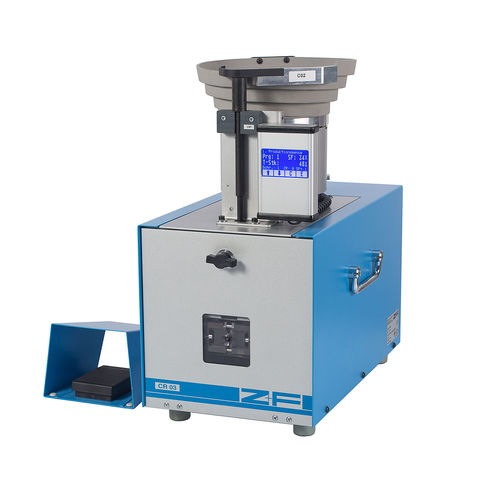

Cable crimping machine CR 03
semi-automaticpneumatic

cable crimping machine
cable crimping machine
Add to favorites
Compare this product


Characteristics

Product handled
cable
Operational mode
semi-automatic
Drive type
pneumatic

Description

Crimping machine CR 03 Technical information The electropneumatic driven, easily adaptable crimper is specific designed to process loose turned contacts. In the range of 0.08 up to 2.5 mm2 (AWG 28 – 14) wires and contacts can be crimped. Standard is a 4/8-indent crimp corresponding to MIL 22520. Optionally is it possible to adapt the machine for other crimpforms. Manual adjustment of the crimping-depth (by option automatically by motor). The machine can be converted for other contacts by using specific tool kits. All tools are easily replaceable. The crimping process is started by a foot switch. Options - Z+F crimp force monitor - Adjustment of the crimping-depth by a motor - Other crimp forms: 4-indent, B-Crimp Crimping range: 0,08 – 2,5 mm² (AWG 28 – 14) 4 – 6 mm² (AWG 12 – 10) Crimping form: 4/8-indent / B-Crimp Infeed length: 23 mm (0.91 in.) Cycle time: 2 s Power supply: 100 – 240/50 – 60/135 V/Hz/VA Air pressure: 5,5 bar (79.77 psi) Dimensions (w x d x h): 260 x 560 x 540 mm (10.2 x 22 x 21.3 in.) Weight: 37 kg (81.57 lbs)
