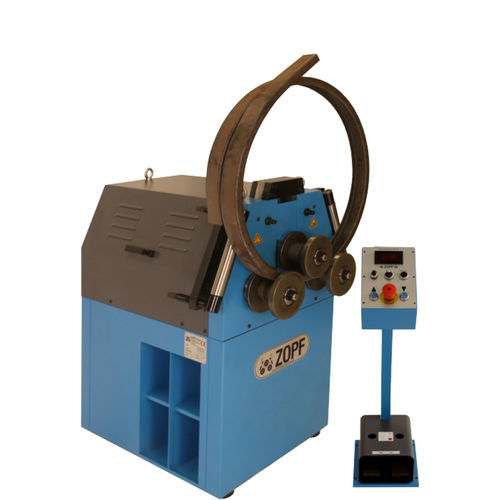

hydraulic bending machine / for tubes / profile / NC
ZB 70 series Zopf

{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Product handled:

    for tubes, profile

  • Other characteristics:

    NC, 3 drive rollers, horizontal, vertical, 2 drive rollers, pyramid type, 2-axis

Description

TECHNICAL SPECIFICATION
- Two driven shafts (ZB 70/2 M and ZB 70/2 H)
- Manual adjusting of the center roller (M-serie)
- Three driven shafts (ZB 70/3 M and ZB 70/3 H)
- Hydraulic adjustment of the center roller (H–serie)
- Digital readout with memory (H–serie)
- Working position horizontal and vetical
- Shaft are supported by conical bearings
- Slide bars on the slide-support are exchangeable
- Standard rollers are included

NC – Control for the ZB 70/3 HA
- two axes controlled
- Touch screen
- memorise of 1000 programs each 19 steps
- interpolation possible
- accuracy of the y-axes 1/10 mm
- programable forward and backward
