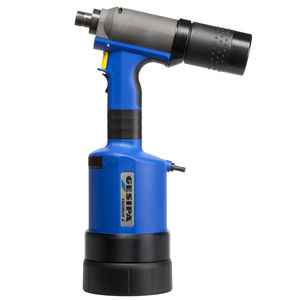

GESIPA lockbolt riveters

Areas of use • All blind rivets and lockbolts up to a mandrel breaking force of 50 kN • Same performance and technical characteristics as the respective individual units in the TAURUS® series 1-4, 5-6 with different stroke • ...

Working range 4.8 lock bolts MagnaGrip®* and C6L®* Technical data Weight: 2.0 kg Operating air pressure: 5 - 7 bar Air hose connection Ø: 6 mm Air consumption: 4.8 NL / stroke Traction power: 18,000 N at 5 bar Stroke: 25 mm Accessories Maintenance ...

Rivet diameter: 6.4 mm

Working range 6.4 lock bolts MagnaGrip®* and C6L®* Technical data Weight: 2.6 kg Operating air pressure: 5-7 bar Air hose connection: 6 mm Ø (1/4“) Air consumption: approx. 4.8 NL per rivet Setting force: 23,000 N at 6 bar Stroke: 19 ...

Rivet diameter: 6.4 mm

Working range Blind rivets above 6,4 mm Ø all materials and lockbolts up to10 mm Ø with corresponding pulling heads Technical data Weight: 3.4 kg Operating air pressure: 5-7 bar Air hose connection: 6 mm Ø (1/4’’) Air ...

Working range Blind rivets above 6,4 mm Ø all materials and lockbolts up to10 mm Ø with corresponding pulling heads Technical data Weight: 3.4 kg Operating air pressure: 5-7 bar Air hose connection: 6 mm Ø (1/4’’) Air ...

Working range Blind rivet nuts from M3 up to M10 of all materials and M12 aluminium and steel, blind rivet nut studs M4-M8 Technical data Weight: 1,25 kg Stroke: 6 mm The GBM 40-R is compact, functional and fast. With its compact ...

Rivet diameter: 4.8 mm - 7.8 mm

RIV508 is a hydropneumatic tool in case without kit Ideal when using standard blind rivets d.4,8mm to d.7,8mm, structural blind rivets d.4,8mm to d.7,8mm and blind bolts d.4,8mm and d.6,4mm. RIV508 is a reversible tool. It is supplied ...

Rivet diameter: 4.8 mm - 7.8 mm

The hydropneumatic tool RIV 508B is designed to place standard and structural blind rivets d.4,8mm to d.7,8mm and blind bolts up to d.6,4mm. RIV508B features an aluminium light handle, which is connected to a control unit where are located ...

Rivet diameter: 4.8 mm - 10 mm

The hydropneumatic RIV511B is designed for place place Rivlock and Rivlockgrip blind bolts up to d.10,0mm and structural Magnariv and Monriv rivets up to d.9,8mm. RIV511B comes without the front head kit. Kits have to be ordered separately, ...

Processing of blind rivets nuts up to M12 Very compact. Very powerful. Despite the very small dimensions, the conception as a ratchet tool allows the processing of blind rivets nuts up to M12 (aluminum and steel)!! The perfect tool for ...

With its extremely compact dimensions and its powerful integrated hydraulic, the high performance VNG 152 is the perfect helper in tight mounting situations. Blind rivet nuts from M3 to M8 (aluminum and steel) can be set quickly and easily. ...

The stroke-controlled solution for large tasks – optionally up to M12. The sophisticated design and individual setting options make the Honsel VNG 903 your perfect tool for the easy and reliable setting of all common blind rivet nuts. These ...

The special HONSEL tool for folding rivet nuts. These can be set quickly and easily thanks to their very long stroke of up to 15 mm and correspondingly extended mandrels.

Reliable with low wear. On the HONSEL BZ 143A, the clamping jaws are specially adapted to the trapezoidal grooves of the rivet mandrel. In combination with the modified clamping mechanism, this guarantees secure and positive setting ...
