Particularly suitable for screwing into thin walled pieces. Performance in the smallest space requirements. Material Body Steel, galvanized Stainless steel 1.4305 Locking pin Stainless steel 1.4305 Knob Thermoplastic PA 6, black, dull
The EH 22110 is an index plungers compact features simple handling. Types that have lock and without lock, have the same building height. The index bolt can be screwed in because of a thread recess. Their temperature ...
For indexing purposes. Material Housing Zinc die-cast, plastic coated, black Locking pin Stainless steel 1.4305 Knob Thermoplastic PA 6, black, dull Pull-ring Stainless steel 1.4310
The EH 22120 series is a unit manufactured by Halder company. It is a machine and fixture element intended for indexing purposes. Further, the unit's lock nuts requires the purchasing separately. The unit's screw length ...
The EH 22120 series offers a wide range of index bolts that are specifically engineered for indexing applications. Turning the index bolt to a 180° causes the locking pin to be pulled-in and linked to a notched catch. ...
The EH 22121, manufactured by Halder, is an index bolt with simple finish. This simplified version in a compact design index bolt can operate to temperatures up to 250°C. The locking pin will be pulled in by lifting the index bolt. The ...

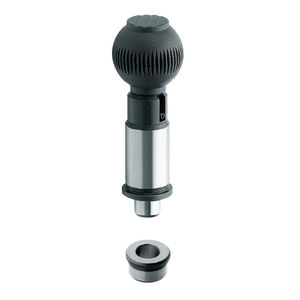

... precision and index plungers that comes with a pin that has a cylindrical shape. This device provides a rapid mounting and positioning applications. It has the capacity to provide a high repeatability because of the combination ...
