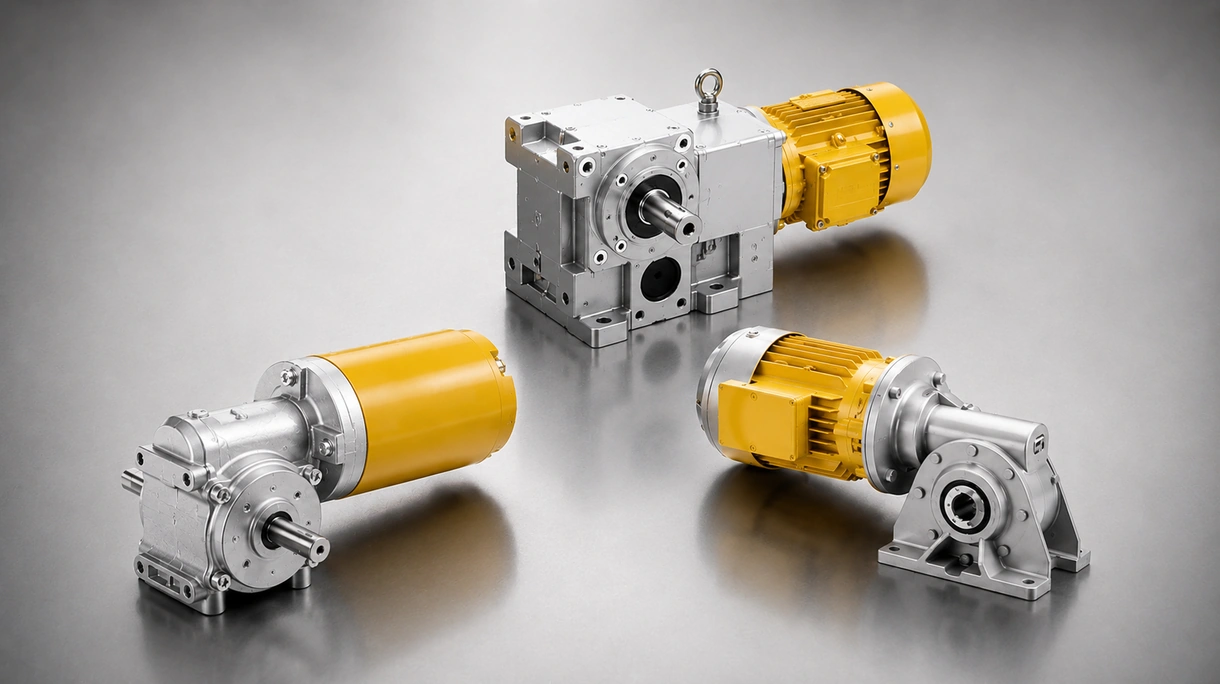

right angle gear-motor
right angle gear-motor: A technical guide
4 Criteria to choose your right angle gear-motor
Nominal Output Torque
Engineers must verify that the continuous torque rating meets peak load requirements while maintaining a necessary safety service factor.
Total Mechanical Efficiency
Selecting high-efficiency gear stages reduces heat generation and energy consumption, directly impacting the total cost of system ownership.
Backlash and Precision
Low angular backlash is essential for positioning accuracy in automated systems where precise stop-start cycles are critical for throughput.
Overhung Load Capacity
Bearings must withstand radial forces from chains or belts to prevent premature shaft failure and ensure long-term mechanical reliability.
Available technologies and advantages

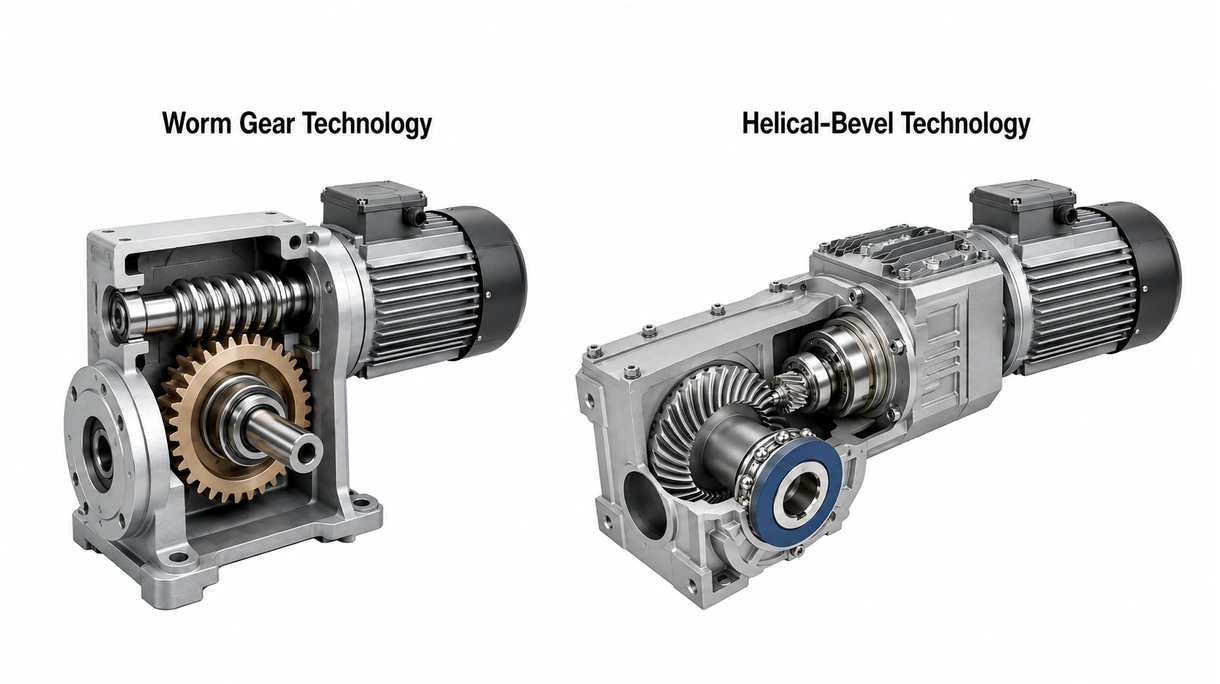

Worm Gear Technology
These units utilize a screw-like worm meshing with a bronze wheel to provide high reduction ratios in a compact, perpendicular footprint. They offer excellent shock resistance and low initial costs but are limited by lower mechanical efficiency and high heat generation during operation.
Helical-Bevel Technology
These systems employ curved bevel teeth to transmit power efficiently at right angles with significantly higher torque density than standard worm gear sets. They provide superior energy efficiency and exceptionally long service life despite the higher upfront costs and more complex mechanical mounting requirements.
Spiroplan Technology
These unique right-angle units feature steel-on-steel meshing and wear-free gearing designed for high-speed operation and smooth torque transmission in small spaces. They ensure quiet operation and space-saving dimensions but are generally restricted to lower torque ranges compared to robust helical-bevel industrial units.
6 expert tips
Prioritize total cost of ownership by selecting high-efficiency helical-bevel units to reduce long-term energy and maintenance expenditure.
Evaluate the service factor against actual duty cycles to prevent premature motor burnout during periods of peak production.
Always verify the technical certification to ensure compliance with local building safety standards and long-term durability.
Verify thermal ratings to ensure the gear-motor operates within safe temperature limits under continuous full-load industrial conditions.
Specify integrated frequency inverters to optimize speed control and protect mechanical components from harsh start-stop cycle stresses.
Inspect housing materials and sealing grades to ensure compatibility with corrosive washdown or dusty manufacturing floor environments.
Innovations and Trends
Integrated sensors provide real-time vibration and temperature data to enable predictive maintenance and minimize unplanned production downtime events.
New motor designs meet strict global energy regulations while significantly lowering carbon footprints and operational costs in manufacturing.
Specialized housings for food processing prevent bacterial growth and withstand aggressive chemical cleaning protocols without compromising material integrity.
Combining right-angle bevel stages with planetary outputs offers extreme torque density for space-constrained high-performance robotics and automation.
