24 Vdc rotary encoders

Incremental encoder résolution (pulses per revolution: 4,096 unit - 65,536 unit
Flange size: 37 mm
Shaft diameter: 33 mm

Compact magnetic rotary encoder with solid shaft Specially developed for use in mobile machines, the absolute rotary encoder WV3600M provides reliable and precise measured ...

Incremental encoder résolution (pulses per revolution: 4,096 unit - 65,536 unit
Flange size: 36 mm
Length: 64.5 mm

Compact magnetic rotary encoder with hollow shaft Specially developed for use in mobile machines, the absolute rotary encoder WH3600M provides reliable and precise measured ...

Incremental encoder résolution (pulses per revolution: 4,096 unit - 65,536 unit
Flange size: 36 mm
Length: 54.5 mm

Magnetic safety rotary encoder with solid shaft The smallest safety multiturn rotary encoder for mobile machines! Specially developed for use in mobile machines, the ...

Rotational speed: 100,000 rpm
Output frequency: 100 kHz
Process temperature: -40 °C - 150 °C

... Resolution up to 24 bits Mechanical angular position accuracy : ± 0.02° Latency <5 µs Refresh rate up to 100 kHz Rotation speed up to 100 000 rpm Insensitive to low frequency interference fields ...

Rotational speed: 60,000 rpm
Process temperature: -40 °C - 125 °C

... industrial automation. Features 28 mm square module Absolute - to 13 bit resolution (8,192 counts per revolution) 24 V and 5 V power supply versions High speed operation to 60,000 ...

Housing diameter: 30 mm
Rotational speed: 30,000 rpm

The RMB30 encoder module provides the functionality of the RM36 encoder in a compact component format for simple customer integration. With a large range of outputs and both 5 V and 24 ...

Incremental encoder résolution (pulses per revolution: 1 unit - 5,000 unit
Shaft diameter: 6 mm - 20 mm
Rotational speed: 10,000 rpm

... , absolute angular position output incrementally per Easy-Teach pulse 10…30 VDC Male M12 x 1, 8-pin Push-pull A, B, Z, A (inverse), B (inverse) Country of origin - DE Weight ...

Incremental encoder résolution (pulses per revolution: 0 unit - 5,000 unit
Flange size: 58 mm
Shaft diameter: 10 mm

... rpm) 5…30 VDC RS422/TTL invertible Pulse frequency max. 300 kHz M12 × 1 male connector, 8-pin 5000 pulses per revolution Country of origin - IN Weight - 376 g Technical ...

Flange size: 36 mm
Shaft diameter: 10 mm
Rotational speed: 2,000 rpm - 4,000 rpm

... Data Encoder line - Industrial-Line Technology - Magnetic Output type - Absolute multiturn Shaft Type - Solid shaft Shaft diameter D [mm] - 10 mm Flange diameter - Ø 36 mm Flange type - Clamping flange Operating ...

Output frequency: 10 kHz - 50 kHz
Process temperature: -40 °C - 85 °C

Incremental encoder for rotative applications consisting of sensor head PMIS4 and magnetic ring PMIR7/PMIR7N All metal housing Large guiding distance Up to 184,320 pulses / 360° Specifications Output - Incremental ...

Output frequency: 10 kHz - 50 kHz
Process temperature: -40 °C - 85 °C

Incremental encoder for rotative applications consisting of sensor head PMIS4 and magnetic ring PMIR5 All metal housing Large guiding distance Up to 327,680 pulses / 360° Specifications Output - Incremental encoder ...

Shaft diameter: 10 mm
Rotational speed: 12,000 rpm
Output frequency: 5 Hz - 2,000 Hz

Newall’s RPE-PV features a dynamic encoder resolution capability that allows users to easily program the encoder resolution to any value between 1 and 10,000 counts per revolution. Users can program ...

Incremental encoder résolution (pulses per revolution: 1 unit - 15 unit
Process temperature: -40 °C - 100 °C

... the optical encoders or incremental encoders are the magnetic encoders. Here, magnetic field sensors are used to determine the angular position. The magnetic field generated ...

Incremental encoder résolution (pulses per revolution: 8 unit - 1,024 unit
Process temperature: -20 °C - 85 °C

... the optical encoders or incremental encoders are the magnetic encoders. Here, magnetic field sensors are used to determine the angular position. The magnetic field generated ...

Flange size: 15 mm
Housing diameter: 25 mm
Output frequency: 10 kHz - 100 kHz

... electronics: ETA25K absolute analogue encoder (ETA25K X redundant version): Provides an absolute analogue signal with 12 bits resolution. ETP25K absolute analogue encoder: Pulswidth output (PWM) ETI25K ...

Flange size: 25 mm
Housing diameter: 25 mm
Shaft diameter: 6 mm

... Singleturn electronics: ETA25F absolute encoder (ETA25F X redundant version): Provides an absolute analogue signal with 12 bit resolution. ETP25F absolute analogue encoder: PWM output. ETI25F incremental ...

Flange size: 19 mm
Housing diameter: 25 mm
Shaft diameter: 6 mm

The ETx25 singleturn Hall effect encoder family is characterized by its high durability with over 100 million shaft revolutions and independent linearity up to +/- 0.3%. The rotary encoders ...

Housing diameter: 58 mm
Shaft diameter: 3 mm - 15 mm
Process temperature: -40 °C - 80 °C

... hollow shaft, blind hole hollow shaft, blind hole The optical absolute Sendix S58 PROFIsafe encoders are based on the new Kübler Industrial Ethernet encoder platform and are therefore already designed ...

Flange size: 58 mm
Shaft diameter: 10 mm - 12 mm
Process temperature: -40 °C - 80 °C

... shaft, with flat surface shaft, with feather key The optical absolute Sendix S58 PROFIsafe encoders are based on the new Kübler Industrial Ethernet encoder platform and are therefore already designed ...

Incremental encoder résolution (pulses per revolution: 1 unit - 1,024 unit
Process temperature: -30 °C - 50 °C

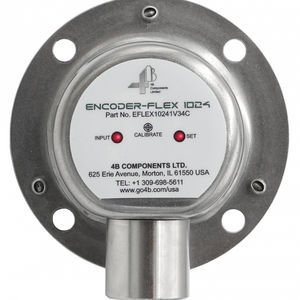

4B's Encoder-Flex 1024 is an advanced rotary shaft encoder designed for monitoring various parameters, including slide gate position, shaft position, and shaft speed. Its applications ...

Wheel encoder for belt conveyor. Return-belt mounted heavy-duty belt speed monitor / encoder

Shaft diameter: 6 mm
Length: 23.2 mm
Rotational speed: 1,500 rpm

EAM30A Series Encoder (Patented) - Magnetic encoder - Absolute multi-turn: 8/10/30/60/80/100 turns - Up to 14 bit for single-turn - SSI differential signal output (standard) - Zero point setting ...

Shaft diameter: 6 mm
Length: 23.2 mm
Rotational speed: 6,000 rpm

EBM30A Series Encoder (Patented) - Magnetic encoder - Absolute multi-turn: 30 turns (standard), 60/80/100 turns (optional) - Up to 14 bit for single-turn - RS485 signal output (standard) - ...

Incremental encoder résolution (pulses per revolution: 1 unit - 4,096 unit
Housing diameter: 35 mm
Shaft diameter: 6 mm

EI35A- C9 Series Magnetic Encoder - Magnetic encoder - Any PPR up to 4096 available - With 1 set of precision ball bearings - Screw & Servo mount - Signal type: incremental signal - Housing ...

Incremental encoder résolution (pulses per revolution: 65,536 unit
Rotational speed: 4,000 rpm
Process temperature: -30 °C - 80 °C

... absolute magnetic encoders have explosion protection according to ATEX: Gas (Zone 2, Ex II 3G Ex nC IIC T4 Gc). They are suitable for use in the most difficult conditions and for mounting situations where space is limited. The ...

Incremental encoder résolution (pulses per revolution: 1 unit - 100,000 unit
Housing diameter: 58 mm
Shaft diameter: 6 mm - 10 mm

• Body • - Ø58mm • Solid shaft • - Ø10mm (standard) • - Ø6mm • Resolution • - From 1 to 100000PPR

Incremental encoder résolution (pulses per revolution: 1 unit - 100,000 unit
Housing diameter: 58 mm
Shaft diameter: 6 mm - 10 mm

This incremental encoder is innovative in many aspects. Its optoelectronic performance allows it to reach resolutions points per revolution. It has a double output allowing simultaneous position and speed monitoring, for example.

Incremental encoder résolution (pulses per revolution: 1 unit - 100,000 unit
Housing diameter: 58 mm
Shaft diameter: 6 mm - 15 mm

Blind hollow shaft encoder with shaft diameter going from 6mm to 15mm. It has a double output allowing simultaneous position and speed monitoring, for example.

Incremental encoder résolution (pulses per revolution: 360 unit - 16,000 unit
Housing diameter: 69 mm
Shaft diameter: 8 mm - 10 mm

Housing diameter: 60 mm
Shaft diameter: 13 mm
Length: 41 mm

Application - Industry Machine -‧Automated Equipment Feature ‧Reliable sturdy design ‧Small Size & Easy Mounting ‧ESD (IEC61000−4−2) ‧Reverse connection protection ‧Short-Circuit protection Resolution 360, 400, 500, ...

Incremental encoder résolution (pulses per revolution: 360 unit - 2,500 unit
Housing diameter: 35 mm
Shaft diameter: 4 mm - 8 mm

Application ‧Industry Machine Features ‧Reliable sturdy design ‧Small Size & Esasy Mounting Resolution ‧360 ~ 2500 P/R

Incremental encoder résolution (pulses per revolution: 1,024 unit
Shaft diameter: 59 mm
Length: 2,000 mm

... affecting the code disc, for example if the encoder is dropped during installation, which can be avoided by alternative scanning technologies. The use of inductive scanning enables us to create an encoder ...

Shaft diameter: 59 mm
Length: 1,500 mm
Rotational speed: 6,000 rpm

... this is our most robust ø58 mm encoder ever. The inductive scanning used on these incremental encoders is unaffected by magnetic fields which sometimes are imposed by break systems mounted on the ...

Incremental encoder résolution (pulses per revolution: 660 unit
Shaft diameter: 59 mm
Length: 1,500 mm

... Use of inductive technology extends the encoder’s lifetime in harsh operating conditions. The technology also makes it possible to make the encoder smaller and lighter compared with conventional heavy ...

Incremental encoder résolution (pulses per revolution: 1,024 unit
Shaft diameter: 6 mm
Output frequency: 25 kHz

Incremental rotary-encoder Square housing, small design and normal degree of protection Maximum pulses / revolution For simple industrial requirements Electrical specifications Max. current consumption: ...

Housing diameter: 58 mm
Shaft diameter: 6 mm - 10 mm
Output frequency: 2 kHz

Programmable incremental optical encoder from 1 to 65.536 pulses per rotation Programmable via USB, without an additional programming box Programmable without powering up the encoder Automatic ...

Incremental encoder résolution (pulses per revolution: 5,000 unit
Housing diameter: 58 mm
Shaft diameter: 12 mm

Incremental rotary-encoder with a solid shaft diameter of 12 mm Housing diameter 90 mm, robust design and high degree of protection Maximum 5.000 pulses / revolution For highest industrial requirements Electrical ...
