Heavy-duty boring mills

X travel: 2,000 mm - 5,000 mm
Y travel: 2,100 mm - 3,100 mm
Z travel: 1,500 mm - 3,000 mm

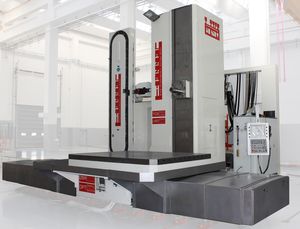

The HB 130T is a T-Type morphology machine with n°2 separate and independent bed which are strongly linked by the rigid foundation. A huge number of foundation bolts and levelling units of BW Fixatoren, positioned every 500mm, are giving ...

X travel: 4,000 mm
Y travel: 3,000 mm - 5,000 mm
Z travel: 1,300 mm

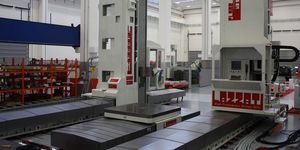

LAZZATI Linea Floor-Type Ram Boring HB 150MM AdvantagesLAZZATI Floor-Type Ram Boring machines are designed to give the best performances and approach to the working area using the maximum potentiality ...

X travel: 6,000 mm
Y travel: 3,000 mm - 5,000 mm
Z travel: 1,600 mm

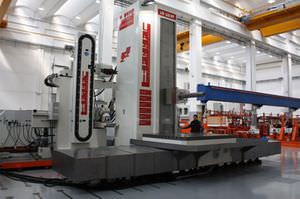

LAZZATI Linea Floor-Type Ram Boring HB 160MM AdvantagesLAZZATI HB 160MM like all Floor-Type Ram Boring machines are designed to give the best performances and approach to the working area using the maximum ...

X travel: 6,000 mm
Y travel: 3,000 mm - 5,000 mm
Z travel: 1,600 mm

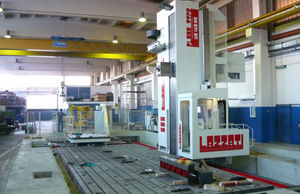

LAZZATI Linea Floor-Type Ram Boring HB 200MM AdvantagesLAZZATI Floor-Type Ram Boring machines are designed to give the best performances and approach to the working area using the maximum potentiality ...

X travel: 0 mm - 40,000 mm
Y travel: 2,000 mm - 4,000 mm
Z travel: 1,600 mm

LAZZATI Floor-Type Ram-Milling HB 2RR Project AdvantagesLAZZATI Floor-Type Ram Milling HB 2RR machines are designed to give the best performances and approach to the working area using the maximum potentiality that the Floor-Type morphology ...

X travel: 3,000 mm - 6,100 mm
Y travel: 2,100 mm - 3,100 mm
Z travel: 1,500 mm - 3,000 mm

The HB 150T is a T-Type morphology machine with n°2 separate and independent bed which are strongly linked by the rigid foundation. A huge number of foundation bolts and levelling units of BW Fixatoren, positioned every 500mm, are giving ...

X travel: 3,000 mm - 6,100 mm
Y travel: 2,000 mm - 3,500 mm
Z travel: 1,500 mm - 3,000 mm

... -The Live Boring Spindle Ø160 travel W=1.100mm of the HB 160T overcome the table center of 435mm with table plate B=2.000×3.000 30ton -A UA 360 “GradoGrado” is overcoming the table center in both vertical and horizontal ...

X travel: 2,000 mm - 6,000 mm
Y travel: 2,000 mm - 3,500 mm
Z travel: 1,500 mm - 3,000 mm

TECHNICAL FEATURES: HB 160ML HB 160MT HB 160MP Max. Vertical Area mm. 3.000 3.500 3.500 with Universal Head mm. 3.250 3.250 3.250 Spindle Ø Spindle mm. (130) 150 - 160 150 - 160 - 180 ...

X travel: 2,000 mm - 6,000 mm
Y travel: 2,100 mm - 3,100 mm
Z travel: 1,500 mm - 3,000 mm

Max. Vertical Area mm. 3.800 A UA 360 - Automatic Universal Head 1°x1° A Axis pos. 360 C Axis pos. 360 Spindle Taper ISO 50 - Big Plus Max. Speed Rotation RPM 4.500 Motor Max Power kW 60 RAM Section ...

X travel: 2,000 mm
Y travel: 2,000, 1,500 mm
Z travel: 1,300 mm

... optimized structure that delivers stable performance for heavy-duty or high-speed machining. Major structures are all cast-finished, and the main components have thicker bodies to meet all the heavy-duty ...

X travel: 5,000 mm - 9,000 mm
Y travel: 2,500 mm
Z travel: 700 mm

Whole Cast Structure Suitable for Heavy Duty Cutting Full-power 37 kW machining is achieved at 2500-mm spindle height and 700-mm ram slide Guide surfaces X/Y-axis: hydrostatic guide surface, ...
