Industrial gear reducers

Torque: 15,000 Nm - 75,000 Nm
Power: 50 kW - 1,500 kW

The right-angled gear version of the MAXXDRIVE Industrial Gear Unit is manufactured according to the proven UNICASE principle and is available in all sizes. Very high thermal limit powers ...

Torque: 15,000 Nm - 80,000 Nm
Power: 5.5 kW

... a two-stage helical bevel gear unit and a NORDAC LINK frequency inverter which is installed close to the motor. The extruder flanges can safely absorb the forces involved in the process. For the MAXXDRIVETM industrial ...

Torque: 15,000 Nm - 250,000 Nm
Power: 1.5 kW - 1,500 kW

The helical-bevel gear version of the MAXXDRIVE Industrial Gear Unit is manufactured according to the proven UNICASE principle and is available in all sizes. Various sealing options enable ...

Torque: 3,100 Nm - 1,400,000 Nm

The Bevel Helical Gear Unit is an optimized solutions for the task in the future. This series requires more flexibility, high quality performance and standardization when it comes to the industries of handling materials, ...

Torque: 900 Nm - 10,000 Nm
Power: 0.9 kW - 9.1 kW

... and other kinds of industrial machinery, for indoor and outdoor use. This advanced powertrain solution uses a two or three stage gearbox offering reduction ratios of up to 1:95 to satisfy the widest possible ...

Torque: 30 Nm - 800 Nm

The TQK precision planetary gearbox is designed to deliver high-level transmission precision and represent the solution to space problems often posed by increasing machine compactness. TQK is particularly ...

Torque: 0 Nm - 162,000 Nm
Power: 0 kW - 1,860 kW

Series G gear units are available in parallel shaft helical units and right angle shaft bevel/helical units in double, triple and quadruple reduction gear stages having a maximum output torque of up to ...

Torque: 0 Nm - 117,000 Nm
Power: 0 kW - 8,300 kW

... H InLine industrial gearboxes feature a very modular design and construction and provide excellent performance and engineering advantages. They are available in right angle and in-line versions with ...

Torque: 0 Nm - 132,000 Nm
Power: 0 kW - 4,825 kW

... high degree of interchangeability of components. The gear housing has been designed to withstand the normal forces whilst reducing weight to the ideal level leading to most optimal industrial gear ...

Torque: 0 Nm - 1,000,000 Nm
Power: 550 kW

... torque. The gearboxes also use performance shafts made from high tensile steel to further increase the load that the gear box can handle. All this coupled with over-sized diameters (compared to industry ...

Torque: 0 Nm - 3,500 Nm
Rotational speed: 0 rpm - 12,000 rpm

The RAM-MSD is a two-speed gearbox engineered by Redix. It is suitable for use in in-line integration between a water cooled motor and a spindle. The unit is constructed in a compact and lightweight structure, based ...

Torque: 0 Nm - 3,500 Nm
Rotational speed: 0 rpm - 12,000 rpm

The RAM-KIT Series of 2-speed Spindle Gear Reducer, manufactured by Redex, is specifically designed for an easier in-line integration between a water cooled motor and a spindle inside a RAM. It is configured ...

Torque: 0.2 Nm - 2.1 Nm
Rotational speed: 100 rpm - 1,000 rpm

... 20 mm and 7 different ratios. The housing is sealed to prevent grease leakage and keep dust out. These are left hand worm gears. The rotation direction on the shaft is arbitrary. - smooth power transmission - simple ...

Torque: 0.05 Nm - 10 Nm
Rotational speed: 100 rpm - 1,000 rpm

Bevel gears Material: Housing aluminium. Bevel gears steel. Version: Housing anodized. Bevel gears surface hardened. Ball bearing with rubber sealing washer RS. Note: Universally ...

The Model 3900 of Right-Angle Bevel Gear Reducer, manufactured by Ketterer, is designed as a bevel gear with through-going without twisting spindle for push and pull executions. This ...

... cyclodial style reducers manufactured by CDS. This series covers a wide range of diminution ratios, with greater load handling limit. It is free from vibration execution with extreme proficiency. These feature makes it ...

Torque: 103,000 Nm
Power: 0.09 kW - 160 kW

... manufactured by Rossi. This bevel gear reducer has a maximum torque capacity of 7100 daNm. Features of the Cat. G include universal mounting design, as well as easy and functional shaft-mounting design. The ...

Torque: 1,060,000 Nm - 3,000,000 Nm

The Rossi range of comprehensive planetary and bevel planetary gear units is intended for heavy industrial applications and features a design suitable for both shaft rotation and case rotation with excellent ...

Torque: 9 Nm

Gearbox with right angle output Low noise High quality and durable design On request wide reduction range possible (5:1 up to 75:1) Long working life (> 20.000 h) Robust bearing system Available as stand-alone ...

Torque: 27 Nm - 3,600 Nm

PLN Precision planetary gearbox Our straight-toothed precision planetary gearbox has been designed for the highest performance and torque. The prestressed tapered roller bearings in ...

Torque: 27 Nm - 2,600 Nm

PLFN Precision planetary gearbox Our PLFN features a standardized flange interface for ease of installation. The straight-teeth precision planetary gearbox has been designed for the highest performance ...

Torque: 3.33 Nm - 383.5 Nm

... by the Economy Line. With its compact, but powerful design, it is ideal for dynamic multiple axis systems. Our right angle gearbox features lifetime lubrication, is easy to install, all this at an unrivalled price-performance ratio.

Torque: 4.5 Nm

Kahlig AntriebsTechnik's P32I are planetary gearboxes with brushes. These devices are compatible with different motors, such as M28, M36 and M42. The gears and housing are both made out of steel. In addition, ...

Torque: 4 Nm

The PK42I from Kahlig AntriebsTechnik are planetary gearboxes with brushes. These devices are compatible with different motors, such as M28, M36 and M42. The gears are out of steel and the housing are ...

Torque: 10 Nm

... website has an outline of performance data of each type of gearboxes. Customers can choose the most compatible combination of gearbox and motor by using the menu and selecting the planetary gearbox. The compatible motor ...

Torque: 12 Nm - 1,850 Nm
Rotational speed: 1,500, 2,000, 3,000, 4,000 rpm

All SPLF gears adopt the alloy forged steel as the raw material, the powerful heat treatment, the latest helical gear design, full needle roller bearings, and the high level gear grinding ...

Torque: 32 Nm - 1,050 Nm
Rotational speed: 2,000, 3,000, 4,000 rpm

... precision gearbox series. All SPH gears adopt the alloy forged steel as the raw material, the powerful heat treatment, the latest helical gear design, full needle roller bearings, and ...

Torque: 32 Nm - 1,850 Nm
Rotational speed: 1,500, 2,000, 3,000, 4,000 rpm

... precision gearbox series. All SVX gears adopt the alloy forged steel as the raw material, the powerful heat treatment, the latest helical gear design, full needle roller bearings, and ...

Torque: 3,000 Nm - 50,000 Nm
Rotational speed: 6 rpm - 511 rpm
Power: max 400.0 kW

... heavy applications. Designed to offer higher performance in a compact design, the A Series is featuring helical and bevel gears. The new monobloc series is based on a rigid and compact housing to fit on a maximum of ...

Torque: 930 Nm - 7,530 Nm
Power: 2.2 kW - 160 kW

The shaft mounted gear series ( IRO ) are the best solutions for quarries and mining sectors. The backstop feature of the gearboxes allow you to load heavy charges on your inclined conveyors or applications. ...

Torque: 880 Nm - 33,000 Nm
Rotational speed: 7 rpm - 140 rpm
Power: 0.37 kW - 160 kW

Designed for heavy industrial duties, the A / AE series present the advantages of being perfectly adapted to hard environment and tasks. The gears are designed to help the prevention of noise and vibrations ...

Torque: 12 Nm - 36,800 Nm
Rotational speed: 0 rpm - 400 rpm
Power: 0.37 kW - 132 kW

The VARITRON® Cycloid Drive unique cycloid gear design has advantages superior to speed reducers using common involute tooth gears. The key to VARITRON®'s Cycloid Drive matchless performance ...

Torque: 12 Nm - 36,800 Nm
Power: 0.2 kW - 45 kW

The VARITRON® Cycloid Drive unique cycloid gear design has advantages superior to speed reducers using common involute tooth gears. The key to VARITRON®'s Cycloid Drive matchless performance ...

Torque: 0.37 Nm - 36,800 Nm
Rotational speed: 0 rpm - 400 rpm
Power: 0.25 kW - 45 kW

The VARITRON® Cycloid Drive unique cycloid gear design has advantages superior to speed reducers using common involute tooth gears. The key to VARITRON®'s Cycloid Drive matchless performance ...

Torque: 6,100 Nm - 900,000 Nm
Power: 4.3 kW - 5,082 kW

JRHH Series Parallel Shaft Gear Units Size：3~28 Ratio：1.25~450 Input power：4.3~10515kW Output torque：2300~1400000N.m

Torque: 11,000 Nm - 173,000 Nm
Power: 16 kW - 1,305 kW

JRHD Series Bucket Elevator Gear Units Size：5~16 Ratio：25~71 Input power：16~1305kW Output torque：11000~173000N.m

Torque: 75,000 Nm
Power: 106 kW - 141 kW

JROKE Series Plam Oil Gear Units ratio:56,80 Input power: 106,141kW Output torque: 75000N.m

Torque: 40 Nm
Rotational speed: 4,000 rpm
Power: 400 kW

Economy planetary gearbox The PL is notably light, extremely powerful, yet suitable for complex production cycles due to its low-friction bearing design and optimized lubrication. A genuine powerhouse at an attractive, ...

Torque: 20 Nm
Rotational speed: 4,500 rpm
Power: 100 W

This is our PL series servo gearbox, the most economic but reliable model. The modular design allows engineers to select from single stage,two stages and three stages of planetary gearing to achieve dozens of ratios from 3:1 to 1000:1. ...

Torque: 0 Nm - 20,000 Nm
Rotational speed: 0 rpm - 10,000 rpm

Our PS Series is uncomplicated and powerful. It can be connected directly to your installation without the need for an intermediate flange. The large deep groove ball bearing at the output can absorb large axial and radial forces. In ...

Power: 4,200 kW

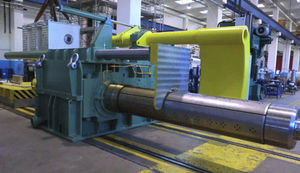

Coiler Unit Galbiati recently manufactured a coiler unit with speed change including mandrel and coil ejector plate, intended to a cold rolling aluminium plant in China. Technical data of the coiler unit: Output speed: 79-336/178-761 ...

Rotational speed: 67 rpm
Power: 0 W - 2,700,000 W

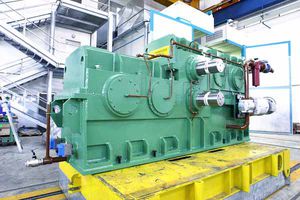

Twin drives for copper alloy mill main drive Twin drives for copper alloy mill main drive. 2.700 kW 67 rpm Roll center distance 540 mm

Rotational speed: 0 rpm - 466 rpm
Power: 0 W - 5,000,000 W

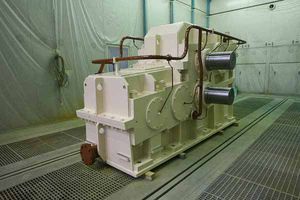

Cold rolling twin drive Twin drive for plate cold mill. 5.000 kW 466 rpm Roll center distance 470 mm

Torque: 18 Nm - 62 Nm
Rotational speed: 107 rpm - 190 rpm
Power: 200, 400 kW

... application. SU Drive Pack Features -Extremely compact, in-hub planetary design -Bearing and internal structure are ideal for industrial environments with a maximum radial load capability up to 799 kg (1762 lb) -Standard ...

The Circulate 3000 DI option is an instrument manufactured by Shempo company. The DI Series has a base mount configurations, and it can be directly dropped-in to replace the other common brand without any modifications required to the ...

The NIDEC-SHIMPO is able to provide a variety of OEM gear solutions that rely on a cycloidal style gearing as the platform for the custom gear motor and gearbox assembly. The unit provides ...

Power: 0.16 ch - 25 ch

... of Boston Gear's speed reducer product line - has been serving industry reliably for over 15 years. Its proven modular design has set the industry standard for performance ...

... input as used by Boston Gear in the QC700 series provides easy motor removal and replacement while minimizing space constraints. Most gearmotor failures (85%) are due to a motor failure and therefore ...

... bevel gear drives feature compact, rugged construction and precision-forged, straight-tooth bevel gears, making them ideal for industrial applications where low-speed/ high-torque drives ...

Torque: 0 Nm - 9,500,000 Nm
Power: 4 kW - 6,000 kW

PV parallel-helical/helical-bevel industrial gear units are especially excellent due to their high level of availability, quality and attractive price-perfbrmance ratio. Since PV came into market; it ...

Torque: 10,700 Nm - 1,179,000 Nm
Power: 4.5 kW - 10,000 kW

The ERmaster gearboxes are the CMD standard range of parallel helical gears, for use in horizontal or vertical configuration. Gears are made of high quality case hardened steel, ...

The N series gear boxes come with a hollow or standard output shaft. Housing comes in either in cast iron, in S.G. iron or cast steel. Reduction ratio from 5 to 60 Coupling N series reducers ...

Torque: 3,000,000 Nm

Jumboflex is a high capacity worm gear reducer available in 8 different sizes. It can be used as a reducer or step-up gear box. Coupling the Jumboflex as a primary element ...

Rotational speed: 12 rpm - 457 rpm
Power: 0.25 ch - 1.5 ch

The 811 model of reducers by Bison is constructed with high quality cast aluminum housing, with hardened steel helical and spur gears rated AGMA Class 11. The unit utilizes ball and needle bearings, ...

Torque: 0 Nm - 7,512 Nm
Rotational speed: 126 rpm

... repeatability. A core part of our Galaxie® actuators, these gearboxes integrate easily into existing machine concepts. Standardized attached components enable easy connection to a standard industrial ...
