T slot clamps
This clamp is like the Micro ™ Toe Clamp, only it is designed to be used in the T-slots of machine tables. It provides positive down force while maintaining a low profile. ...
The EH 23700 Series of Clamp, manufactured by HALDER, is specifically designed in steel and blackened design. Its wearing parts are heat-treated, and is available in pull-rod of special steel.
The EH 23310 by Halder is a pivoting clamp which comes with a size of 25. For this specific unit, it comes with a down thrust clamps that suits for harsh operation. Also, this unit comes with a case that ...
Clamping force: 16.6 kN - 320 kN
2.1832 Double-T clamping bars 2.1832 Double-T clamping bars single acting with spring return max. operating pressure 400 bar max. clamping force: 16.6 .. 320 kN T-slot ...
... part-specific fixtures with three or four pin-modules in a modular building kit - two basic equipment optins: X-CLAMP Base Kit Small / X-CLAMP Base Kit Large - flexible and universal combination for ...
Application: The clamp is used for all clamping tasks in which clamping is effected via T-grooves, grooves and threaded bores. Note: For clamping, either clamping screws DIN 787, stud bolts DIN 6379 ...
Slot stop tempered and burnished. Application: To be used for longitudinal or transversal function. The low overall height allows application with flat workpieces.
Clamping force: 17,800 N

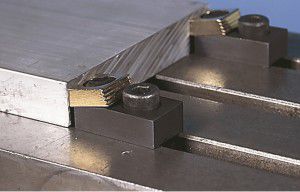

T-Slot Toe Clamps This clamp is similar the Compact Toe Clamp, only it is designed to be used in the T-slots of ...
Clamping force: 4,000 N
... eccentric ensures precise, fast and powerful clamping (4000 N). With a height of less than 6 mm and a width of 20 mm, the plate clamps leave a maximum of space for tool clearance.
Clamping force: 4,000 N - 6,500 N
SPECIALLY DESIGNED FOR ELECTRICAL DISCHARGE MACHINING Clamp With clamping key and clamping screw, aluminium bronze body, aluminium swivel shoe, steel arm and screw.
Clamping force: 8,000 N - 16,000 N
Clamp with clamping key Fixing screws supplied separately Aluminium swivel shoe and body, steel arm. The clamp is mounted using screws and remains in a xed position
Workholding from Vischer & Bolli - Changeover in seconds. The smart move from set-up time to productivity! with existing machine outfit – increase in productivity – increase in return
Clamping force: 12,000 N - 70,000 N
Application Examples:Pressure die casting, métal forming andheavy métal cutting■stepless vertically adjustable■S 20: No protruding bolts■very high clamping forces■Material: Hardened alloy steel■Clamping frame: Drop forged
