PoEコールステーション KNPA800mini

イーサネット音響装置用表示照明付

Product

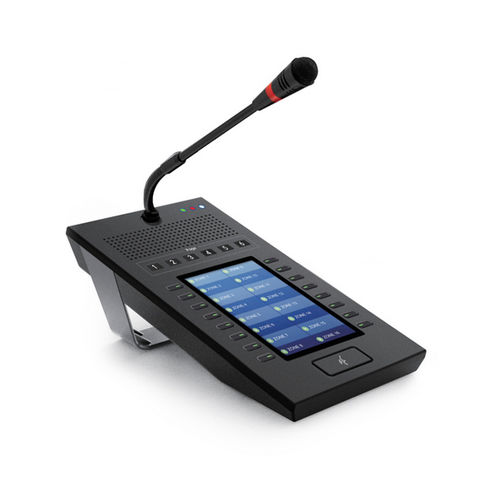

Paging Microphone (PA Call Station) model KNPA800mini.

Basic Information

• Model: KNPA800mini
• Size: 150 (L) x 100 (W) x 76 (H) mm (excluding microphone)
• Material: ABS (Acrylonitrile Butadiene Styrene)

Key Functional Features & Benefits

• Purpose-Built Design: engineered for professional PA applications; EN 54-16 and ISO 7240-16 certified; CE marked and RoHS compliant; designed for 24x7 operation with energy-saving standby features.
• User-Friendly Interface: 16 (8*2) free-programmable buttons; 3.5-inch TFT display; clear power and communication indicators; push-to-talk activation with visual confirmation; one button with security cover for emergency function; supports 96 DSS keys (16*6 pages); integrated time-synchronization (GPS or local Observatory time servers).
• Superior Audio Management: professional gooseneck unidirectional microphone; adjustable microphone sensitivity and volume control; 3.5mm jack for wireless microphone input; software-configurable parametric equalization and limiting; built-in configurable chime generator (single-tone, 2-tone, 4-tone); high-quality audio with frequency response 100 Hz - 20 kHz and signal-to-noise ratio ≥ 60 dB.
• Flexible Broadcasting Capabilities: selective zone, group-zone, and all-call paging; pre-recorded message distribution with zone targeting; live announcements with high clarity; configurable emergency alert buzzer with adjustable volume and instant override; advanced scheduling for automated announcements (specific dates and repeated daily/weekly/monthly); priority-based audio routing with emergency override functionality.
• Enterprise-Grade Reliability: Power over Ethernet (PoE) operation; dual Ethernet ports for network redundancy; no external power supply required; remote monitoring support with visual and aural output level indicators; extended connectivity with CAT5 up to 100 m and Fiber + Pair cable up to 3 km.

Paging Phone Size / Visuals
Product includes size/installation diagrams and multiple detail images illustrating the unit, mounting and connector locations.

Specification
Detailed technical specification provided as product specification image(s) (see product images / PDF for full spec sheet).

Application
Suitable for PA systems, selective zone paging, emergency alerting and integrated PA system deployments in enterprise, transport, public safety and industrial environments.

Pdf
Product technical manual / datasheet available: KNPA800mini (PDF).

Caractéristiques / spécifications techniques

• Model: KNPA800mini
• Dimensions: 150 x 100 x 76 mm (L x W x H, excluding microphone)
• Material: ABS
• Microphone: professional gooseneck unidirectional microphone; adjustable sensitivity/volume
• Buttons: 16 (8*2) free-programmable buttons; optional 96 DSS keys (16*6 pages)
• Display: 3.5-inch TFT
• Audio performance: 100 Hz - 20 kHz frequency response; SNR ≥ 60 dB
• Chime generator: configurable (single-tone, 2-tone, 4-tone)
• Paging modes: selective zone, group-zone, all-call, pre-recorded messages, live announcements
• Emergency: one-button emergency with security cover; emergency override and priority routing
• Network: PoE operation; dual Ethernet ports for redundancy; CAT5 up to 100 m; Fiber + Pair up to 3 km
• Time sync: GPS or local Observatory time servers
• Compliance: EN 54-16, ISO 7240-16, CE, RoHS
