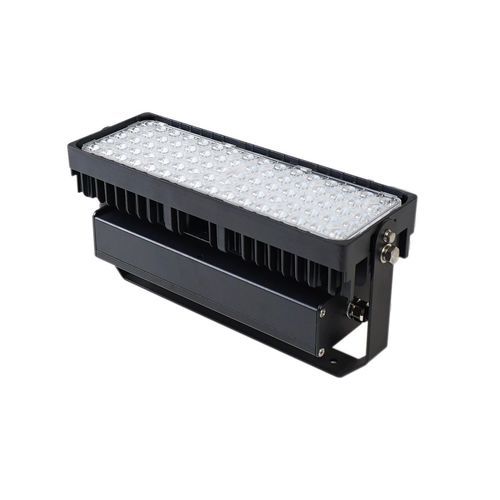

LED投光器 JNFLM12-100S-6500-A7-DIM

HIDHPSIP65

製品概要
1×2モジュール構成の100WモジュラーLED投光器。Philips Lumileds (Luxeon TX) LEDとMeanwell製ドライバーを搭載。調光対応、IP65相当で、150～175Wのメタルハライド/HID/HPS器具の置換に適した工業・屋外用途向け製品です。

ハイライト / 仕様のポイント
モジュラー1x2のLED投光器、定格100W（システム電力106 W）。調光可能で100–277V入力に対応。エリアや通路照明向けの横長ビーム50×140°。ダイカストアルミ製筐体、IP65・IK08。CRI >80、6000 K（クールホワイト）。寿命推定50,000時間。保証5年。

製品仕様（表）
Product SKU: JNFLM12-100S-6500-A7-DIM
Power Consumption: 100 W
Input Voltage: 100-277V
Beam Angle (°): 50x140°
IP Rating: IP65
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 13000 lm
Color Temperature (K): 6000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Warranty Period (Years): 5
System Power: 106 W
Number of LED Modules: 1 modules
Beam Angle Square: 50x140°
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket Mount
Fixture Height (mm): 113 mm
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Product Weight: 6 kg
LED Driver Brand: Meanwell driver(s)
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

梱包・発送（表）
Product Dimensions (mm): 326x128x113 mm
Net Weight (kg): 6 kg
Export Carton Dimensions (mm): 400x360x230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

技術仕様

• SKU: JNFLM12-100S-6500-A7-DIM
• Power Consumption: 100 W
• System Power: 106 W
• Input Voltage: 100-277V
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds (Luxeon TX)
• LED Driver: Meanwell driver(s)
• Total Lumens: 13,000 lm
• Colour Temperature: 6000 K（クールホワイト）
• CRI: >80
• Beam Angle: 50×140°
• IK Rating: IK08
• IP Rating: IP65
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Mounting: Adjustable bracket mount
• Fixture Dimensions (L×W×H): 326 × 128 × 113 mm
• Product Weight: 6 kg
• Operating Temp: -20°C to 45°C
• Humidity Range: 10%–90% RH
• Rated Lifespan: 50,000 hours
• Warranty: 5 years
