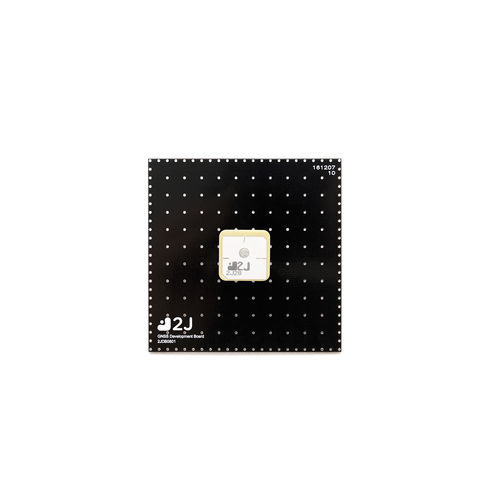

Development kit 2JDK0101a-C104N

Development kit - 2JDK0101a-C104N - 2J Antennas
Development kit - 2JDK0101a-C104N - 2J Antennas
Development kit - 2JDK0101a-C104N - 2J Antennas - image - 2
Development kit - 2JDK0101a-C104N - 2J Antennas - image - 3
Development kit - 2JDK0101a-C104N - 2J Antennas - image - 4
Add to favorites
Compare this product

Description

Mounting - Thru-Hole Mount Ceramic Included in Kit - 1×2JDB0801-C104N Development Board 6×2JCP1840101a Ceramic Antennas Dimensions (mm) - 18 x 18 x 4 (Patches) 70.4 × 70.4 × 13.5 (Board) Operating temperature - -40 °C to +85 °C Standards - GPS/QZSS/Galileo Frequency (MHz) - 1575.42 - Ceramic patch 2JCP1840101a (2J 28) 1580.42 - Ceramic patch 2JCP1840102a (2J 29) 1585.42 - Ceramic patch 2JCP1840103a (2J 30) 1590.42 - Ceramic patch 2JCP1840104a (2J 31) 1595.42 - Ceramic patch 2JCP1840105a (2J 32) 1600.42 - Ceramic patch 2JCP1840106a (2J 33) Passive Gain (dBi) - ~3.6 Impedance (Ohm) - 50 Radiation Pattern - Hemispherical Axial Ratio (dB) - 3 max Polarization - RHCP
