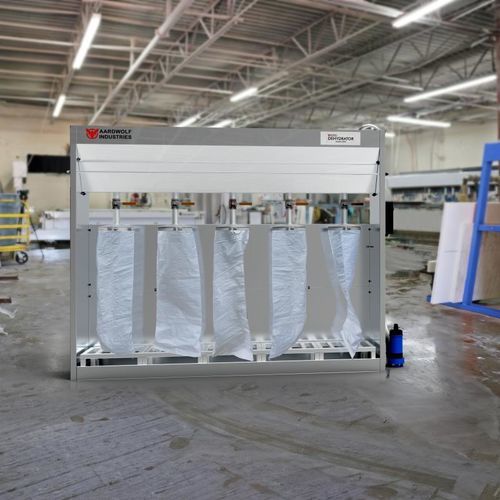

Dehydration dewatering system ASDF1

centrifugalsludgefiltration

General
The Sludge Dehydrator Filter is a dewatering and filtration unit designed to separate abrasive sludge and slurry generated during machining and finishing of marble, granite and other natural stones. The system performs a one-step solids/water separation to reduce slurry volume and simplify waste handling.

Features

• Fast dehydration: Collects and retains abrasive mud from stone processing for rapid water removal.
• One-step separation: Combines filtration and dewatering in a single unit to reduce handling steps.
• Stainless-steel construction: Main structure in stainless steel for corrosion resistance in wet environments.
• No rotating parts: Static design reduces mechanical failure points and service tasks.
• Simple operation: Basic component set for straightforward installation and use.

Specifications
Metric / Imperial
Dimensions (L x W x H): 227 cm x 222 cm x 60 cm — 89.4” x 86.6” x 23.6”
Weight: 280 kg — 617 lbs
Power requirements: 110 V 50 Hz (USA) / 220 V 50 Hz (Aus)
Weekly dry mud output capacity: 22 ft³
Mud holding tank capacity: 550 L — 145 Gallons
Sump pump: 6E-CIA-SFS, 189 L/min (or equivalent)
Float switch: Mechanical type
Valves: 2" BSP brass, nickel plated

Package includes

• 4 plastic curtains
• 2 stainless-steel curtain rods
• 1 industrial water hose
• 3 industrial hose clamps
• 15 polypropylene filtration bags
• 1 pit cleaning tool / air stick

Technical specifications

• Model: ASDF1
• Material: Stainless steel main frame
• Dimensions: 227 cm x 222 cm x 60 cm
• Weight: 280 kg
• Mud tank capacity: 550 L (145 Gallons)
• Weekly dry mud output: ~22 ft³
• Sump pump recommended: 6E-CIA-SFS (189 L/min) or equivalent
• Float switch: Mechanical
• Valves: 2" BSP brass, nickel plated
• Maintenance: No rotating parts in main unit
