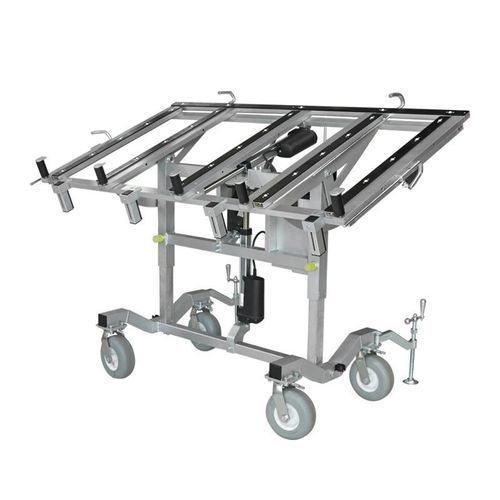

Workshop cart without drawer AAKIC

General The Aardwolf Aluminium Kitchen Installation Cart (AAKIC) is designed for precise handling, lifting and installation of heavy stone countertops and workpieces up to 500 kg (1102 lbs). The reinforced modular aluminium frame offers a lightweight, transportable solution for on-site positioning. Integrated transfer bearings enable smooth slab movement while rubber strips and multiple contact pads protect surfaces.

Key Features

• Working load limit: 500 kg (1102 lbs).
• Supports slabs up to 2200 mm length and 1200 mm width.
• Three linear actuators for lifting, lowering and controlled tilting.
• Lift ranges: vertical 356–1338 mm; horizontal 850–1235 mm.
• Wireless remote control; powered by a 24V rechargeable lithium‑ion battery.
• Ø200 mm flat‑free, shock‑absorbing wheels (2 fixed, 2 swivel with locks).
• Dual crank‑operated floor locks for on-site stability.
• Multiple contact pads and support bars to protect slabs during handling.

Specifications Sizes of the table: L 1800 mm; W 1000–1300 mm
Maximum slab size: L 2200 mm; W 1200 mm
Height of the frame: 929–1229 mm
Working load limit: 500 kg (1102 lbs)
Net weight: 112 kg (247 lbs)
Gross weight: 124 kg (273 lbs)
Packaging dimensions: L 1920 × W 1100 × H 530 mm

Benefits for professional installers

• Reduces physical strain and saves time – powered lift and tilt minimise manual handling and speed up positioning.
• Ensures precision and adaptability – adjustable height and controlled tilting suit residential, commercial and workshop installations.
• Protects countertops – rubber strips and contact pads prevent scratches and chips; smooth transfer bearings reduce friction.
• Job‑site powered operation – 24V rechargeable battery enables use without direct mains connection.
• Transportable professional solution – reinforced modular aluminium frame balances durability and transportability.

Technical characteristics

• Commercial name: Kitchen Installation Cart - Pro version
• Model / product code: AAKIC
• Working load limit: 500 kg (1102 lbs)
• Maximum slab dimensions supported: 2200 mm (L) × 1200 mm (W)
• Table size (adjustable): L 1800 mm; W 1000–1300 mm
• Lift ranges: vertical 356–1338 mm; horizontal 850–1235 mm
• Lift system: three linear actuators with wireless remote control
• Power: 24V rechargeable lithium‑ion battery
• Wheels: Ø200 mm flat‑free, shock‑absorbing (2 fixed, 2 swivel with locks)
• Stability: dual crank‑operated floor locks
• Protection: rubber strips, multiple contact pads and support bars
• Frame: reinforced modular aluminium construction
• Net weight: 112 kg; Gross weight: 124 kg
• Packaging dimensions: L 1920 × W 1100 × H 530 mm
