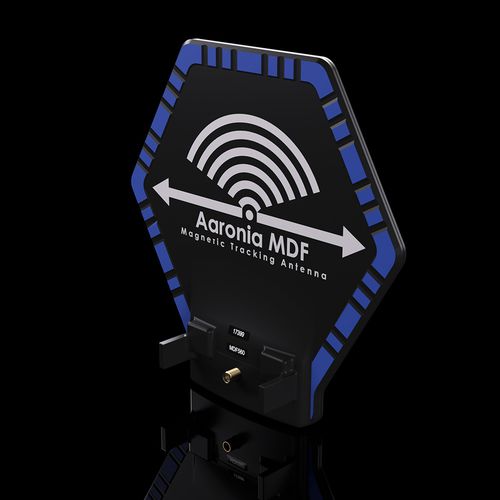

Broadband antenna MDF 9400

RFlog-periodiccompact

Magnetic Direction Finder MDF 9400 • High conversion accuracy allows precise field strength measurements • Perfect for magnetic field direction finding in combination with Spectrum Analyzers • Compact Design and low weight • Can be used with any Spectrum Analyzer or Oscilloscope • Max. input level: 5W (usable as transmitting antenna) • Conversion factor: 1 (0 dB A/m is 0 dBm) • Impedance: 50 Ohm • RF connection: SMA (female) • Temperature range: - 40 °C to +60 °C • Dimensions (L/W/D): 180 x 180 x 50 mm • Weight: 180 g • Incl. Pistol grip with mini tripod function The Aaronia MDF 9400 is a broadband magnetic field tracking antenna, suitable for signal tracking and field strength measurements. The special conversion factor of the MDF, in conjunction with a Power Meter showing dBm values, gives a direct dBA/m display with correct sign (power meter function). Thanks to the high directionality of the antenna, the MDF is ideally suited for signal direction finding.
