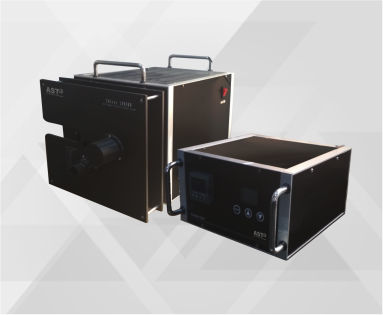

Pyrometer black body calibration source Calsys 1000BB SP

CALsys 1000BB SP calibration source is a highly stable standard Black Body Furnace for calibrating non-contact IR thermometer for the wide temperature range of 50 to 1000°C. The unique feature of this Black Body Furnace is large temperature controlled black body target with a diameter of 29 mm and 150 mm which offer large view area for IR Thermometer. The Emissivity of the target is 0.98 (±0.01) and temperature of the calibrator is set and controlled by a self tuned PID controller with automatic super fine adjustment. Model : Calsys 1000BB SP Temperature Resolution : ≤0.1 Cavity Uniformity : ±4 or better (at 800°C Or higher) Stability : ±0.2°C at 50°C ±0.4°C at 500°C ±0.6°C at 1000°C Method of Control : Digital self tuned PID Controller Operating Conditions : 20 °C to 45 °C Power Requirement : 220-240 VAC, 50 Hz Dimensions : 270(H) x 360(W) x 270(D) mm Weight : Approx 15 Kg Key Features • High Stability • Wide Operating Range (50 to 1000°C) • PC Interfacing • Sighting Tube • Simple to use and cost effective • Real time blackbody temperature monitoring and logging
