Measurement microphone 12.5 - 50 mV/Pa | PS9200Kit

free-field

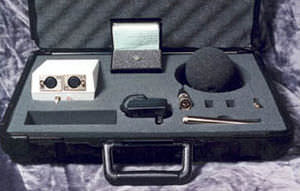

The PS9200KIT is a complete 1/2 inch Type 1 measurement microphone system. Housed in an ABS custom die-cut foam case (SC1) the PS9200KIT is an excellent choice for field applications (1/4 inch and 1 inch versions available). The heart of the KIT is the 1/2 inch Type 1 measurement microphone. A selection of 4 different 1/2 inch capsules is offered. These include models with frequency responses to 40 kHz, noise floors of 12 dBA in both free field and pressure versions. Microphone sensitivities range from 12 to 50 mV/Pa. Each KIT also includes the PS9200 - 2 channel precision microphone power supply, AC adapter (110 or 220 Vac), 4012 - 1/2 inch preamp with cable , WS1 windscreen, and the SC1 storage case. The package is offered at a savings off the individual item pricing. The SC2 - locking case is available as an option. ACO Pacific's full line of options like the "G" gain stage option for use with board level analyzers are available at the catalog price. Other microphone selections may also be substituted based on the relative catalog prices. Applications include loudspeaker testing, architectural acoustics, product testing, preventative maintenance, automobile and aircraft testing, and regulatory compliance testing. The PS9200KIT provides a microphone system traceable to US and International standards.
