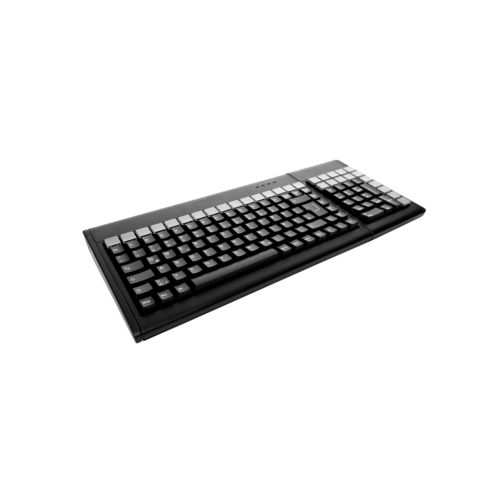

Desktop keyboard AK-S7002 series

with mechanical keysindustrialcommunications sector

AK-S7002 PROGRAMMABLE DESKTOP KEYBOARD The AK-S700S Keyboard Series is a high quality, high reliable programmable Desktop Style Keyboard. 31 programmable keys with relegendable keycaps can be easily programmed with up to 256 key codes in up to 8 layers. Mechanical gold cross point contact switches (50 million operations per key) for long life time, even at heaviest use of the numeric keys. This keyboard was specially designed for data input applicatiopns like in accounting department. The programmable keys, close to the numeric block, allow one hand data input with all special functions like “Tab”, comma, brackets, and so on, close by. Ergonomic desing with a height of 35mm at the 3rd row FEATURES 31 Programmable Keys 31 Relegendable Keycaps Metal Frame Construction Configuration Software included Internal Storage Memory Cherry MX Key Modules COMPATIBILITY All operating systems supporting standard USB resp. PS/2 Keyboards PROGRAMMABLE KEYS 31 Keys INTERFACE USB 1.1 or PS/2 TEMPERATURE RANGE Storage: –20º to +60º C Operation: 0º to + 50º C SUPPLY VOLTAGE 5 V +5/-10% (via USB Interface) CURRENT CONSUMPTION Max. 500mA, typical 60mA (no external device connected) DIMENSIONS Approx. 439mm x 199mm x 45mm WEIGHT 1500g (without packaging) KEY SWITCH TECHNOLOGY Cherry MX Key Modules LED STATUS INDICATORS Caps Lock, Num Lock, Scroll Lock, Power on KEY TRAVEL Approx. 4,0 mm +/-0.5 mm AGENCY APPROVALS CE, RoHS
