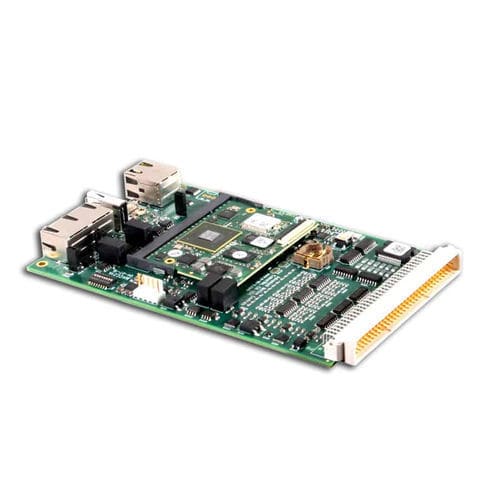

Stand-alone motion control card MACC series

multi-axisanalogCANopen

The Motion Automation Control Cards (MACCs) are stand-alone general purpose motion/automation controllers programmed with ADVANCED Motion Controls’’ Click&Move® IDE software. As a stand-alone controller, a MACC can take the place of a PC in a control system to reduce cost. A MACC can also be configured to work in conjunction with a PC where the MACC handles the real-time and time-critical processes such as motion control, and the PC handles less time-critical processes such as the HMI. Benefits - Multi-axes motion control - Digital and Analog I/O handling - Programmed using Click&Move IDE - Graphical HMI programming - Can be a CANopen, EtherCAT, and POWERLINK Master - WLAN and Bluetooth compatible MACC02 - ARM Cortex-A9 Microprocessor - Micro SD card storage - Real-Time Linux - Real-Time Clock - Full PLC Logic for Machine Control - Fieldbus I/O Connectivity MACC11 - 32-bit 120 MHz Risc Processor - 256 kbyte zero wait state SRAM for data - 1 Mbyte FLASH for firmware and user program storage - 4 kbyte EEPROM for non-volatile parameter storage - C Programmable - Micro SD Card - Bicolor Status LED - RTC with Battery Backup
