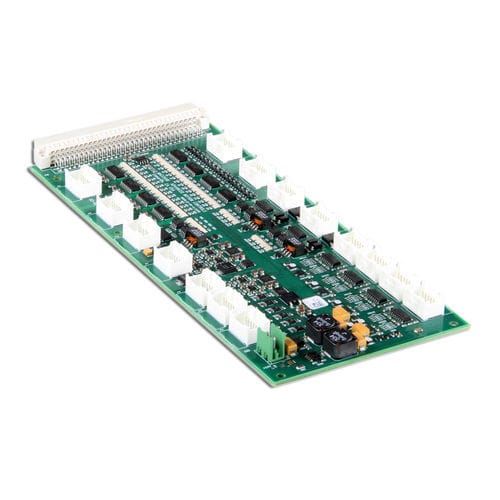

Digital I/O card MACCIO1RS42216 digital outputs8 digital inputs
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Signal type
- digital
- Bus
- RS422
- Number of inputs/outputs
- 16 digital outputs, 8 digital inputs, 8 analog inputs
- Bus standard
- FPGA
- Applications
- for servo drive
- Other characteristics
- with optocoupler
Description
The MACCIO1 module features the necessary digital and analog I/O’s to support up to four current mode servo drives with ±10V analog command input. A cost-effective and high performance motion control system can be built using the hardware resources of the MACC on-board FPGA and the software resources of the Click&Move® software development environment.
8 16-bit analog inputs
8 16-bit digital inputs
16 optocoupled digital inputs
16 optocoupled digital outputs
2×4 isolated high speed RS422 differential outputs
4 isolated high speed RS422 differential inputs
4 incremental or EnDat 2.0 encoder inputs (population option)
