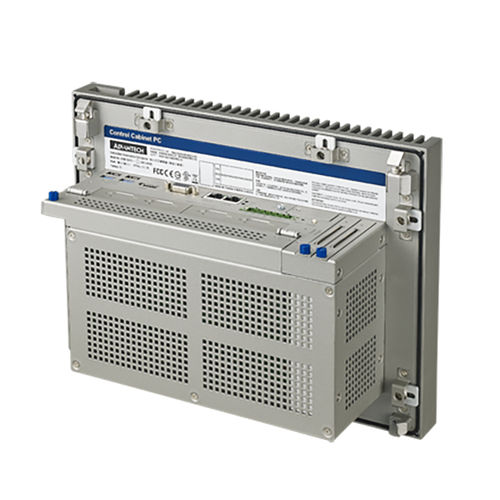

Embedded box computer UNO-3483G
3rd generation Intel® Core™USB 3.0RS-232

embedded box computer
embedded box computer
Add to favorites
Compare this product


Characteristics

Type
embedded
Processor
3rd generation Intel® Core™
Ports
USB 3.0, RS-232, USB 2.0, USB, 3G, GPS, VGA
Field
automation
Other characteristics
fanless, wall-mounted, IP67, compact

Description

3rd Generation Intel® Quad Core Processors with 8GB DDR3L Memory 2 x GbE, 2 x USB 2.0, 2 x USB 3.0, 1 x RS-232, 1 x RS-422/485 (pin header), 1 x VGA, 1 x HDMI 1 x PCIex4, 3 x mPCIe (2 x full, 1 x half), 1 x mSATA slot Space-saving Compact with Fanless Design Thumb screw to easy maintenance Hot-Swappable HDD/SSD support for RAID 0/1 High protection IP67 certification Convenient "Place & Click" Easily exchangeable RTC battery Supports Fieldbus Protocol by iDoor Technology 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology Supports MRAM by iDoor Technology LAN Redundancy (Teaming) Advantech’s UNO-3483G Control Cabinet PC is configured with high-performance Intel Core i7 processors and QM77 PCH, which supports two displays, four USB ports, two mPCIe sockets, and up to three expansion slots. It also includes iDoor technology which supports automation feature extensions such as industry Fieldbus communication, Wi-Fi/3G, Digital I/O. The UNO-3483G has a compact heat sink with integrated seals mounted on the outside of the cabinet through a corresponding cutout, has a placing-and-click feature considers users' activities and then simplifies the installation procedure for space-saving and high protection using IP67 certification. The high performing UNO-3483G model offers user the maximum flexibility when selecting the control cabinet and remains independent of the number and form of control buttons and switches on the front panel.
