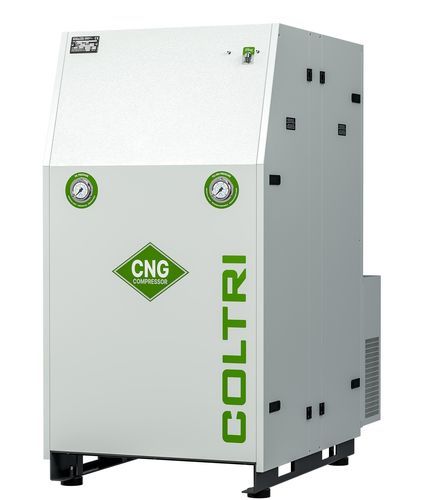

Piston compressor CNG Booster HD RC

natural gasfor CNGelectrically-powered

Designed for medium-sized charging stations, the CNG HD series boosters can compress up to 250 bar of natural gas and biomethane previously treated and filtered from the power line. Designed for professional use, thanks to the four compression stages and low rpm. The remote control panel, supplied with a 5 meter cable, provides all the indications to operate in maximum safety. Imagine having a compressor capable of great performance and endowed with extraordinary solidity. What would all this be without absolute simplicity in managing it? We believe that innovation is for this: to make everything simpler. Monobloc in aluminum Gooseneck in forged steel Splash lubrication Forged aluminum connecting rods Main roller bearings Roller connecting rod bearings 1st and 2nd stage cylinders in aluminum with hard nicasil coating 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating 3rd stage cylinder in special treated steel. Stainless steel intake and exhaust valves Interstage cooling pipes in stainless steel Safety valves after each stage Oil level sensor With them you are safe Coltri CNG compressors put safety first: they are equipped with sensors that stop the machine in case of leaks; and are equipped with inlet and outlet solenoid valves to regulate the operation of the machine and the system. Standard equipment Input filter Hitch-hiking Double PED certified Hyperfilter filter system with molecular sieve Natural gas refueling gun with direct action ngv1 4.5 m filling hose Low pressure switch at the gas inlet Methane gas detector Oil pump Frame color RAL 7035
