Machining of a wide range of plastics from general-purpose materials to engineering and super-engineering plastics (PEEK, PTFE/PTFE variants, PCTFE, MC nylon grades, POM, PMMA/acrylic, ABS, paper-based bakelite, Unilet, etc.). Services include machining by machining center, milling, turning and wire EDM. We accept ultra-small lots from a single drawing/part and handle prototyping, development, and parts for industrial, medical, food, and semiconductor manufacturing equipment.

Examples of machined parts

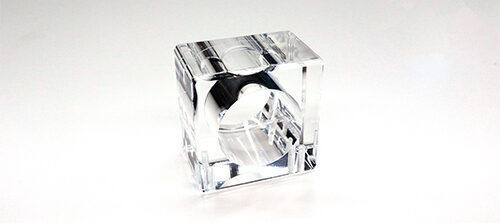

Acrylic block | PMMA (acrylic)
Name: Acrylic block
Material: PMMA (transparent)
Dimensions: X60mm × Y60mm × Z40mm
Remarks: Polishing for improved transparency
Application: Demo machine component

Contact head | PEEK
Name: Contact head
Material: PEEK
Dimensions (small): X36mm × Y28mm × Z32mm
Dimensions (large): X70mm × Y32mm × Z28mm
Remarks: —
Application: Semiconductor manufacturing equipment component

Fixing holder | MC nylon (HeliCoil insertion)
Name: Fixing holder
Material: MC nylon
Dimensions: X140mm × Y140mm × Z10mm (center φ90mm)
Remarks: HeliCoil insertion
Application: HeliCoil sample part

Positioning block | POM (black) | HeliCoil insertion
Name: Positioning block
Material: POM (black)
Dimensions: X80mm × Y50mm × Z8mm
Remarks: HeliCoil insertion
Application: Work holding on transfer line

Plastic flange | MC nylon | HeliCoil insertion
Name: Plastic flange
Material: MC nylon
Dimensions: small diameter φ70mm × L15mm
Remarks: HeliCoil insertion
Application: Flange for bearing mounting

Flow-visibility prototype part | PMMA (acrylic)
Name: Flow-visibility prototype part
Material: PMMA
Dimensions: X100mm × Y234mm × Z8mm
Remarks: Prototype
Application: Research prototype machine (visibility-critical)

Plastic plate | ABS
Name: Plastic plate
Material: ABS
Dimensions: X140mm × Y60mm × Z8mm
Application: Part retention or lightweight components

Jigs | POM / PTFE / MC nylon
Name: Jigs (complete set for transfer robot)
Material: POM / PTFE / MC nylon
Dimensions: —
Application: Complete jig supply by machining for transfer robots

Prototype gear | MC nylon (MC901)
Name: Prototype gear
Material: MC nylon (MC901)
Dimensions: φ100mm
Application: Gears for transfer robots (sliding durability and strength focus)

Chucking jaw | Sumika Super S1000
Name: Chucking jaw
Material: Sumika Super S1000 (insulating super-engineering plastic)
Example dimensions: φ10mm / X15mm × Y20mm × Z12mm (varies by case)
Remarks: Ultra-precision machining (example: slit 0.7mm with tolerance at 0.01mm level)
Application: Semiconductor manufacturing equipment (high precision required)

Transfer plate | MC nylon (MC703HL) | low-friction grade
Name: Transfer plate
Material: MC nylon (MC703HL, low-friction grade)
Dimensions: φ130mm (example)
Remarks: Low friction, intended for non-lubricated transfer use
Application: Transfer parts for semiconductor manufacturing equipment

Case | PTFE
Name: Case
Material: PTFE (e.g. tetrafluoroethylene resin)
Dimensions: X90mm × Y53mm × Z40mm
Application: High-precision, non-contact trays for semiconductor wafer storage

Other examples
Frame plates (paper-bakelite), insulating work guides (Unilet), holders (PMMA with pin insertion) and many other resin materials have proven machinability.

Supported processes

• CNC machining / milling
• Turning
• Sheet metal / laser / welding
• Fabrication (bending / welding)
• Wire EDM / electrical discharge machining
• Plastic machining (single pieces to small lots)
• Large-part machining / long-length machining
• Heat treatment / hardening and polishing
• Secondary operations (HeliCoil insertion, pin press-fit, polishing, etc.)

Materials and features

• Materials handled: PEEK, PTFE (Teflon), PCTFE, MC nylon (various grades), POM, PMMA (acrylic), ABS, paper-bakelite, Unilet, etc.
• Ultra-small lots: from 1 drawing / 1 part
• Suitable for prototyping and development through small-volume production
• Secondary operations available: HeliCoil insertion, pin press-fit, polishing (mirror finish), etc.
• Track record in semiconductor, medical, food, and industrial machinery sectors
• High-precision capability: examples include slit 0.7mm with tolerances at the 0.01mm level (case-dependent)

Technical specifications / characteristics

• Service type: Plastic machining (CNC machining, turning, wire EDM, etc.)
• Minimum lot: From 1 piece (ultra-small lots accepted)
• Main materials: PEEK, PTFE, PCTFE, MC nylon (MC901 / MC703HL, etc.), POM, PMMA, ABS, paper-bakelite, Unilet, etc.
• Typical size range: a few mm up to φ130mm (varies by product)
• Typical secondary operations: HeliCoil insertion, pin press-fit, polishing (mirror finish), low-friction grade handling
• Applications: Semiconductor equipment parts, medical device parts, food equipment parts, transfer parts, jigs, etc.
• High-precision record: tolerance control down to the 0.01mm range (conditions depend on the case)
