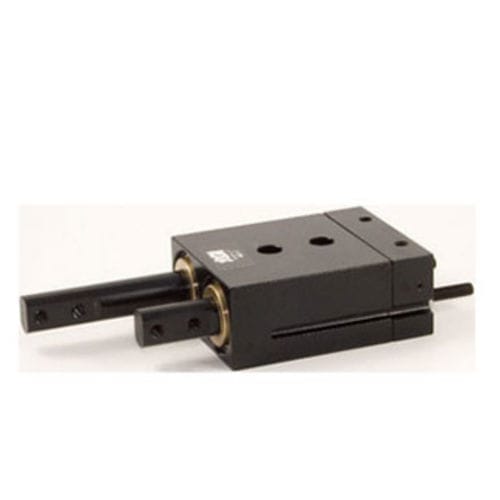

Linear actuator AGE-3

pneumaticdouble-actingcompact

Features & Benefits *Compact, Long Stroke Escapements made for separating and isolating individual parts from tracks, vibratory feeders or conveyors. *Internal sequencing and cross porting make sure both rods are extended before either rod can retract, ensuring positive part feeding. *Easy part jam clearing due to internal back pressure cross port design, this allows both rods to be retracted with the air off. *Piston seals are U-CUP type for long service life. *Hall effect sensors are available to monitor stroke position at any point in the stroke. *Adjustable stroke on retraction. Product Specifications Thrust Force: @80 psi [5.5 BAR] Extend Force: 60 lb [270 Kg] Retract Force: 52 lb [231 Kg] Time: .35 Sec [.35 sec] Side Play: ± .002 in ± 0.06 mm Loading Capacity: Static – Dynamic Max Moment Mx 230 lbs – 24 lbs [24 Nm] – [2.6 Nm] Max Moment My 230 lbs – 24 lbs [24 Nm] – [2.6 Nm] Max Moment Mz 230 lbs – 24 lbs [24 Nm] – [2.6 Nm] Material: High Strength, Aluminum Alloys, Bronze Weight: 1 lb [0.45 Kg] Piston Diameter: 1 in [25 mm]
