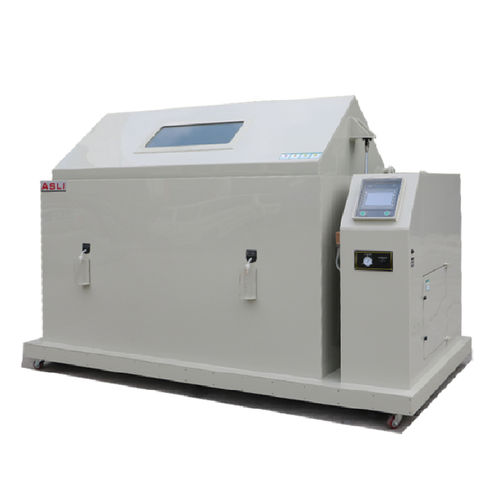

Salt spray corrosion test chamber THS-900 series

benchtop

Application: Salt Spray Test Chamber is specially designed for the testing of the corrosion erosion resistance of the products after their material surfaces have been treated with electric plating, anodizing, spray coating, anti-rusting oil and other anti-erosion treatment. Features: 1. Adopt automatically or manually adding water system, can watered by itself while lack of water. 2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt 3. Double over-heat protection devise and alarm when water short storage to ensure use safety. 4. Digitally temperature controller, PID controlled, precision of ±0.1℃ 5. Laboratory direct steam-heated, even heating speed, reducing the standby time. 6. Tapered Spray tower, even mist dropping 7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing 8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2 (Liquid) Technical Parameters: Model:SH-60 Internal Dimension WxHxD (mm) 600x400x450 External Dimension WxHxD (mm) 1100x600x1200 Lab Temperature:Saline test (NSS ACSS) 35±1 ℃;Corrosion Test (CASS)50±1 ℃ Pressure Bucket Temperature:Saline test method (NSS ACSS) 47±1 ℃ / Corrosion Test (CASS)63±1 ℃ Lab Capacity(L):108 Saline Capacity(L):15
