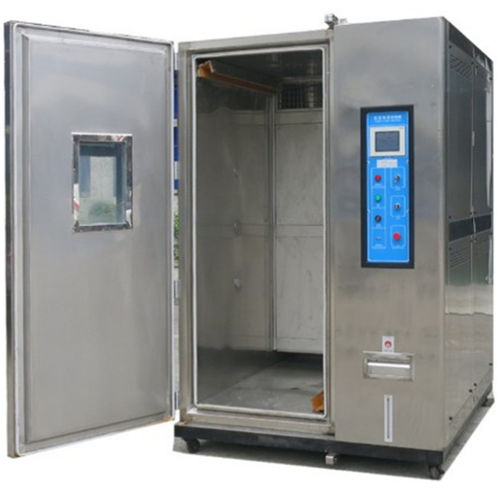

Climatic test cabinet TH-1200-E

humiditytemperaturesolar simulation

The temperature of modules between -40°C±2°C and +85°C±2°C cycling. Relative humidity 85%RH±5% at 85°C in IEC 61215 and 61646, but UL 1703 Control in 85%RH±2.5% at 85°C, allowable deviation range different. Test points：low temperature -40℃，high temperature 85℃ Max temperature rising speed rate：200℃/Hour=3.33/min Max temperature falling speed rate：200℃/Hour=3.33/min 24 hours per cycle，testing for 10 cycles, 240 hours(10 days) Features: 1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable. 2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box. 3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively. 4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable. 5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment-protecting coolant is used for the whole series (R232,R404) 6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
