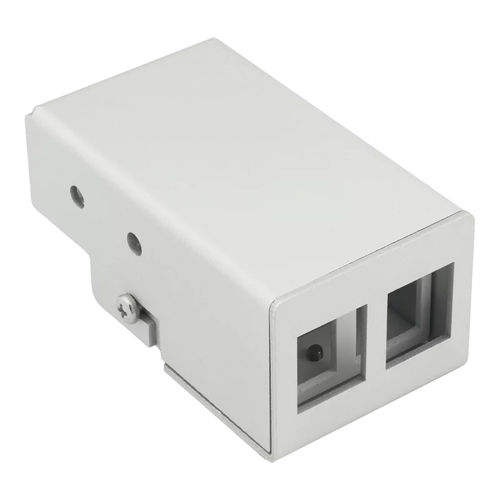

DIN rail housing 21814.AL-2P

rectangularaluminumfor electrical cables

• easy mounting of the modules by removable cover and module holder • lightweight aluminum housing • mounting on DIN rail in 3 different vertical orientations (vertical/vertical+90°/vertical+180°) • Suitable for vertical mounting on a DIN rail • Ajustment of the cable feed vertically upwards and downwards possible • removable cover for user-friendly installation, maintenance and expansion • the Keystone receptacle can be equipped with different modules (CU/LWL/USB/Chinch and many more) • simple port numbering optionally available • 2-port keystone design flat • Material aluminum, 1,5mm • weight housing approx. 84g (without modules) • Temperature resistance -20°C to +70°C • IP protection IP20 • Color silver, eluxed • housing dimensions LxHxW 75 x 43 x 35 mm Scope of delivery: • 1x MDB Compact DRM housing, silver • 1x DIN rail mounting clip XS Mounting: Modules are first attached to the module holder and the module holder is screwed to the lower part by means of a screw. Cables are fastened to the bars placed for this purpose by means of cable ties. The cover is slid on the bottom part and screwed to the side by means of 2 screws. • The modules can first be installed on the module holder and then screwed to the aluminum base using an M3 screw. • DIN Rail Clip XS by means of 2 x M4 screws and nut. • Assembly on DIN Rail Clip , wall and aluminum profiles possible with extra screw M5X10mm and slot stone 8 /M5. • Extra hole for mounting a grounding screw on rear cover side possible. • Cable holder: 2 cables up to 8mm in diameter. • Cables are fixed with cable ties on the provided fastening bars.
