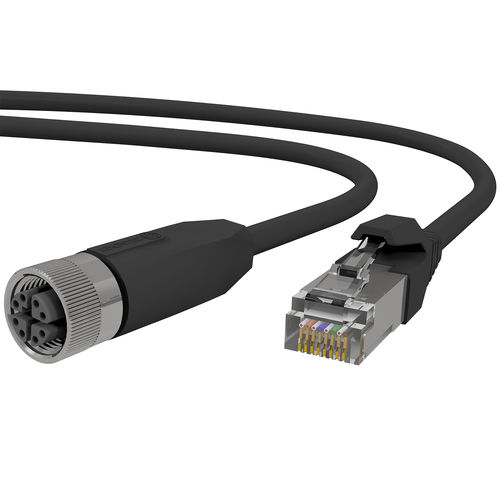

Data connector CC102060401.BKRJ45Ethernetfemale
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- RJ45, Ethernet
- Connection type
- female
- Size
- M12
- Electrical characteristics
- shielded
- Material
- abrasion-resistant rubber, water-repellent fabric
- Domain
- outdoor, industrial
- Other characteristics
- IEC, ISO
- Operating temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)
Description
Application Areas: Industrial/Outdoor Areas
- Electrical Values Cat.6A Klasse EA 500 MHz / 10 GbE
- Plug Side A M12 8-Pin X-coded female, molded
- Plug Side B RJ-45 plug shielded, molded
- Pin assignment X-code
- Norms ISO/IEC 11801 / EN 50173
- Cable Construction 4x2xAWG27/7 S/FTP braid- and foilpairshielding (PiMf)
-
- - 1. Conductors stranded bare copper conductor AWG26/7
- - 2. Isolation Zell-PE conductor Ø 1,03 ± 0,05 mm
- - 3. Pair Shielding laminated aluminium foil
- - 4. Shielding chopper braid
- - 5. Outer Sheath TPU, shiny black, UV-resistant, abrasion resistant, water repellent
-
-
- Cable Diameter Ø 6,5 mm (± 0,2mm)
- Operating Temperture resting-20°C to + 75°C; in operation 0°C to 60°C
- Bending Radius 5x Cable Diameter
