Mains power supply electrical cable dataRJ45Ethernet
Add to favorites
Compare this product
Characteristics
- Type
- mains power supply, data
- Format
- Ethernet, RJ45
- Protection
- flame control, oil-resistant, UV-resistant, chemical-resistant, high-temperature, abrasion-resistant, rugged, low-temperature, robust
- Configuration
- round, twisted pair
- Core material
- copper
- Applications
- industrial, control, for automation, outdoor, network, indoor/outdoor, for the automotive industry, for offshore applications
- Color of the insolation
- black
- Other characteristics
- highly flexible, category 7
- Temperature
Max.: 70 °C
(158 °F)Min.: -40 °C
(-40 °F)
Description

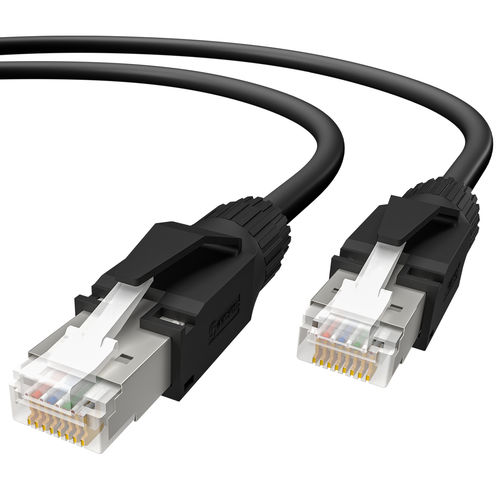

PRO-600R MUD-PRO HIGH SCREEN FLEX RJ45 Cat.6A patch cord S/FTP AWG26/7 black
Application area: industrial, outdoor, offshore and marine applications
Electrical values Cat.6A class EA 500MHz / 10 GbE
Standards
ISO/IEC 11801
IEC 61156-6
EN 50173
EN 50288-4-2
Flame retardant according to
IEC 60332-1
IEC 60092-360
Outer sheath according to SHF1
IEC 60092-360
NEK 606
Chemical resistant to
Mineral oils IRM902 according to IEC 60811-2-1
UV-resistant according to
ISO 4892-2 UV-A
ISO 4892-2 UV-B
Operating temperature -40°C - +70°C
PoE PoE/PoE+ according to IEEE802.3at
Cable construction HIGH SCREEN FLEX MUD PRO Cat.7 S/FTP 4x2xAWG26/7
Outer sheath MUD-outer sheath, black
Bending radius
resting 4x Ø
moving 8x Ø
Cable diameter 6.4mm +/- 0.2mm
Connector RJ-45 shielded, with cable strain relief, 50µ gold-plated contacts
Kink protection sleeve AIXONTEC RUGGEDBoot, black
