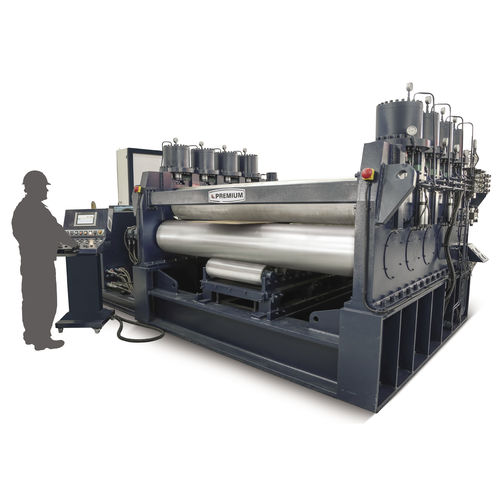

Sheet metal straightening machine APSM

automatic

AKYAPAK APSM machine is designed as standard to fix sheet metal thicknesses from 3 mm to 60 mm and widths from 500 mm to 3000 mm. According to customer needs, it can be manufactured with 5, 7, or 9 balls. Number of balls is not related to capacity, but to the duration of the fixing process. In 9 ball machines, the sheet is straightened in one time, in 7 ball machine in 3-4 times, and in 5 ball machine in 5-6 times. With the welded ST-52 steel construction frame, the diameters and materials of the correction balls, the longevity of the used bearings and the high correction pressure forces, AKYAPAK APSM machines are ready to serve their users for many years. As with all machines manufactured by AKYAPAK, APSM machines are undergoing a very rigorous manufacturing process. These machines, which have been manufactured after being designed by experienced and expert teams in three dimensions, and tested for durability in analysis programs, have passed many dimensional and functional tests. STANDARD FEATURES Complete steel (st-52) welded construction machine body Rollers supported in roller-bearings High tensile special roller balls Digital indicators for the position of upper balls OPTIONAL FEATURES Compactor roller Rollers toughened by induction Propulsion in upper rollers Material tray Adjustable rotating speed
