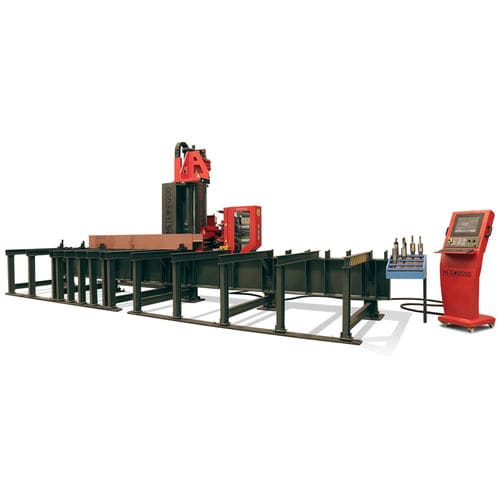

Single-spindle drilling line Meteor 1200

CNCfor profileslaser

METEOR-1200 is developed to drill any kind of profile by rotating the beam for Small-Mid Size Fabricators. The tight tolerance between the holes is not a matter anymore since day by day steel fabricators need more accurate manufacturing and assembling in shorter time. The labor is costly so METEOR-1200 is ready to reduce your labor either for drilling or for on-site assembly. Ready to drill beams, angles, flat sheets and any suitable geometry. You can also make milling for slots, pockets and any geometry by having state of arts control system. Fast return on investment High versatility in small footprint Fully CNC control 15 kW spindle motor power 6 Station tool changer LASER automatic tool measurement & material zero referencing High positioning tolerance and repeatability Very robust design Worldwide spare parts availability User friendly interface Fast, accurate and maintenance free Available in lenghts of 6, 10, 14, 18, 22, 26 meters STANDART FEATURES Control Panel: SIEMENS Drilling Unit: 1 Rill Chuck Cone / Spindle Head Tool Shafts hole: BT40, suitable for ATC system Working length: 12000 mm (2000x6000x8000x18000 OPSİYON) Profile height: 50 mm - 1200 mm Profile width: 50 mm - 1200 mm Support table height: 1200 mm Length: 17469 mm Height: 3299 mm Width: 3721 mm Maximum tool length: 300 mm Tapping: M12 – M20 Tools ATC: 6 AD.
