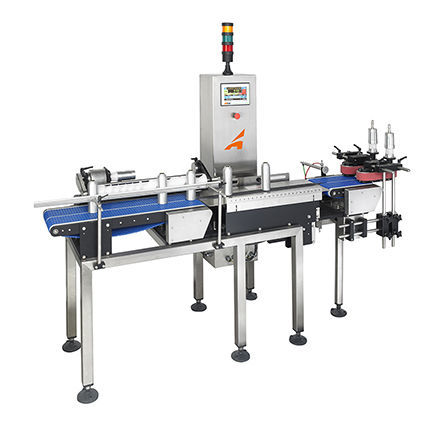

Package checkweigher CW/10

for cosmetic productsfor food productsfor containers

Weighing packages up to 10 lbs at speeds of 250 containers per minute, All-Fill’s CW/10 is the checkweigher for fast and accurate weighing applications. Our modular design offers the ruggedness and durability for demanding production environments. The CW/10 can achieve accuracies to 0.5 grams, depending on the application. Save money and maximize efficiencies with our seamless filler integration and feedback capabilities. Package Dimensions - 12” (305 mm) long by 8” (203 mm) wide; other sizes available Construction - Stainless steel and anodized aluminum (standard) Direction of Travel - Left to Right or Right to Left Conveyor Belts - 8” wide x 12” long, 8” wide x 18” long, and custom Weight Indicator - 3 light tower (standard), 5 light tower (optional), others Controls - Standard 10” touch screen HMI with embedded controller 100 program memory Control Mounting - Rear-mounted control box (standard) front-mounted, pedestal, and rotated 180° (optional) Data Output - RS-232, ethernet, or USB Reject Devices - Heavy duty pusher, stop belt, or signal (only), bopper, air blast, diverter or drop belt Reject Location - Outfeed conveyor or Remote Reject Direction - Front, Rear, or Special
