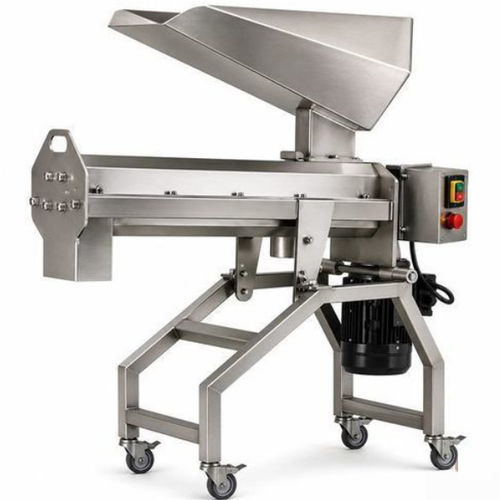

Crop cleaner BG600

Description
Industrial grain brush designed for cleaning, degerming and hygiene of cereals prior to processing. Suitable for milling, seed preparation, artisanal oil mills and malting. Removes dust, impurities, glumes and light particles while preserving grain quality. Supplied with a filtered dust extraction unit to collect dust and fine straw. Purge mode allows complete emptying of the brush; quick disassembly enables full cleaning.

Included

• Standard woven-wire screen Ø1mm mesh #1.6mm (additional perforated plates optional)
• Leman ASP060 dust extraction unit
• General-purpose soft brushing screen woven wire Ø1mm mesh #1.6mm (other screen types optional)

Availability & delivery
In stock — delivered within 2–3 working days.

Technical characteristics (table)
Model: BG600
Wheat throughput: 250 kg/h at +15° incline
600 kg/h in horizontal position
Dimensions: L=500 P=1200 H=1240 mm
Grain outlet height: – Outlet height purge position (nose down): 34 cm
– Brush outlet height horizontal position: 55 cm
– Brush outlet height intensive +15°: 62 cm
Weight: 120 kg
Electrical power: 400V – 50Hz – 3 kW

Technical features / specifications

• Model: BG600
• Wheat throughput: 250 kg/h (inclination +15°); 600 kg/h (horizontal position)
• Dimensions: L=500 mm, P=1200 mm, H=1240 mm
• Grain outlet height: purge 34 cm; horizontal 55 cm; intensive +15° 62 cm
• Weight: 120 kg
• Electrical power: 400V – 50Hz – 3 kW
• Included accessories: standard woven-wire screen Ø1mm mesh #1.6mm; Leman ASP060 dust extraction unit; soft brushing screen Ø1mm mesh #1.6mm (other screens optional)
• Purge mode and quick disassembly for complete cleaning
