Operational testing system

for electric vehiclesfor automotive partsfor automotive applications

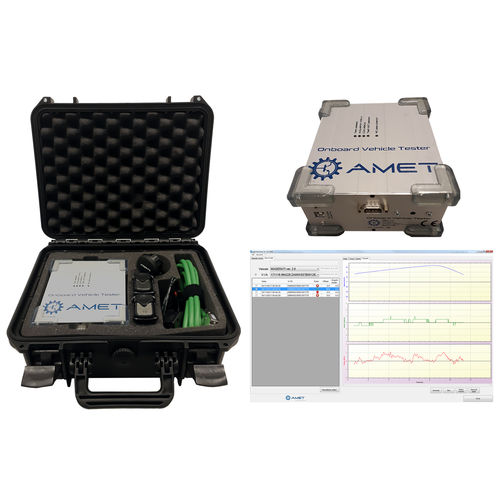

In-vehicle testing system for checking the steering wheel centering, usable with passenger and commercial vehicles. The system works logging CAN/LIN signals (steering wheel torques, angles, vehicle speeds, VIN) and analyzing them through a customizable algorithm. At the end of each test execution, the instrument shows the test result allowing the user to accept or discard the result. The onboard device is supplied with a user friend PC software application for uploading the acquired data, showing graphs, exporting data in Windows format, updating the acquisition system firmware and customize it according to different vehicles. The system stores data related to several tests in order to simplify the post processing analysis. In-Vehicle Steering wheel centering and torque test specification • - Test the steering wheel position and torque • - CAN/LIN based acquisition system • - Automatic test result generation according to OEMs norms • - Capability to work from –5°C to +45°C • - Usable for different passenger cars and commercial vehicles • - PC software application for post processing analysis • - Report generation and data storage • - Possibility to add other signals and other customizations
