admittance RF level switch / for liquids / top-mounted / multi-point
Multipoint II

{{requestButtons}}

Characteristics

  • Technology:

    admittance RF

  • Medium:

    for liquids

  • Other characteristics:

    top-mounted, multi-point, economical, maintenance-free, precision, NEMA 4X, for tanks, high-accuracy, for low levels, horizontal, explosion-proof, rugged

  • Applications:

    for tanks, for hazardous locations

  • Process pressure:

    1,000 psi

  • Process temperature:

    Max.: 60 °C (140 °F)

    Min.: -40 °C (-40 °F)

Description

The MultiPoint II is an economical solution for processes requiring multiple operating points, such as batch processing and sump applications. This level switch provides four operating points with only one single electronic unit to install.

The MultiPoint II has no moving parts and the need for maintenance is therefore eliminated.

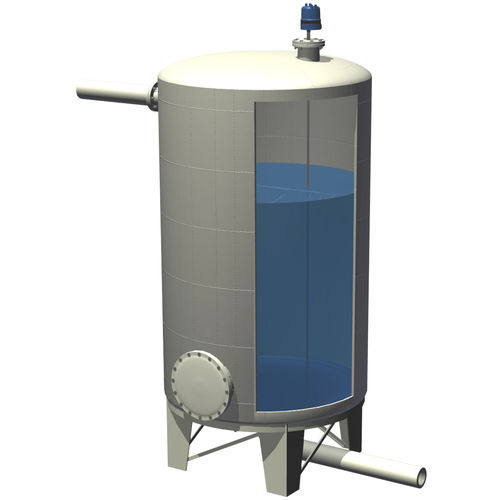

the vessel does not require draining prior to installation as the sensing element is mounted in the top of the vessel.

This level switch can be used to provide high level, high high level, and low level control points. It also provides an adjustable differential feature for one of the control points for pump on/pump off control making it ideal for sump level control in for instance industrial waste water.

The MulitPoint II level switch can be mounted in hazardous areas as it is designed to be intrinsically safe for Class I Groups A,B,C,D and Class II Groups E,F,G (Div. 1 and 2). The unit is mounted in FM approved explosion proof housing.
