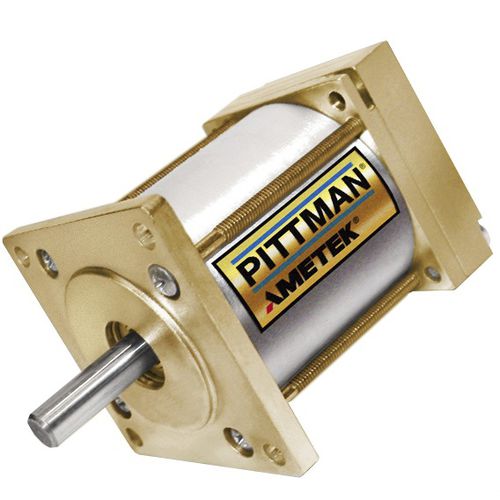

DC motor ES040A seriesbrushless110 Vslotless
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 110 V
- Configuration
- slotless, NEMA 17
- Number of poles
- 4-pole
- Power
Min.: 41 W
(0.056 hp)Max.: 72 W
(0.098 hp)- Torque
Min.: 0.085 Nm
(0.0627 ft.lb)Max.: 0.134 Nm
(0.0988 ft.lb)- Rotational speed
8,000 rpm
(50,265.48 rad.min-1)- Diameter
40 mm
(1.57 in)
Description
The ES040A series brushless DC motor is a high torque density model brushless motor with a slotless design in a NEMA 17 configuration. It is offered in a 3 motor lengths with continuous torque from 0.085 - 0.134 Nm.
Features:
Speeds up to 8,000 RPM
DC bus voltage up to 120 Vdc
NEMA 17 configuration
Eight standard windings - Special windings available
4 Pole Rare Earth design
Catalogs
No catalogs are available for this product.
See all of Haydon Kerk Pittman‘s catalogs
