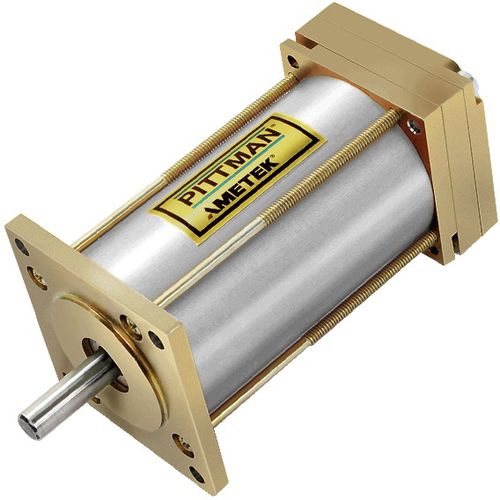

Brushless motor ES050A seriesDC110 Vslotless
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- brushless, DC
- Voltage
- 110 V
- Configuration
- slotless, NEMA 23
- Power
Max.: 110 W
(0.15 hp)Min.: 72 W
(0.098 hp)- Torque
Max.: 0.304 Nm
(0.22422 ft.lb)Min.: 0.176 Nm
(0.12981 ft.lb)- Rotational speed
5,000 rpm
(31,415.93 rad.min-1)- Diameter
50 mm
(1.97 in)
Description
The ES050A series brushless DC motor is a high torque density model brushless motor with a slotless design in a NEMA 23 configuration. It is offered in a 3 motor lengths with continuous torque from 0.176 - 0.304 Nm.
Features:
Speeds up to 5,000 RPM
DC bus voltage up to 120 Vdc
NEMA 23 configuration
Eight standard windings - Special windings available
4 Pole Rare Earth design
