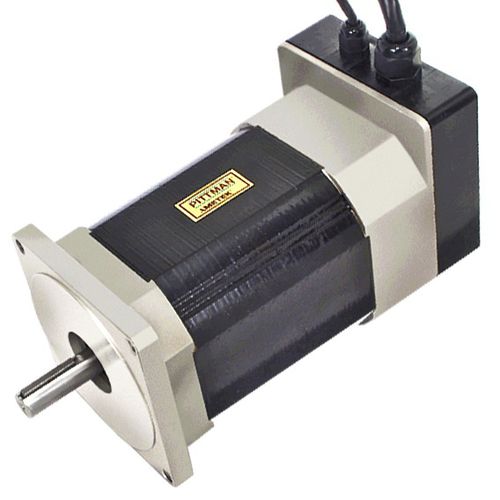

DC motor EC121A seriesbrushless8-pole
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Number of poles
- 8-pole
- Power
Max.: 2,000 W
(2.719 hp)Min.: 900 W
(1.224 hp)- Torque
Max.: 6.5 Nm
(4.7942 ft.lb)Min.: 3 Nm
(2.2127 ft.lb)- Rotational speed
4,000 rpm
(25,132.74 rad.min-1)- Diameter
121 mm
(4.76 in)
Description
The EC121A series brushless motor is a high torque model brushless motor designed in a NEMA 56 package. It is offered in 4 motor lengths with continuous torque from 3.0 - 6.5 Nm.
Features:
Speeds up to 4,000 RPM
DC bus voltage up to 325 Vdc
NEMA 56 package
Capable of 48V Vdc bus systems
8 Pole neodymium design
