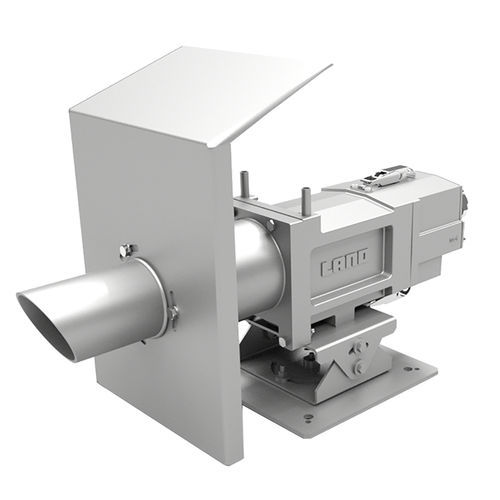

Imager for the metallurgical industry SDS
thermaldetectionfocal plane array

imager for the metallurgical industry
imager for the metallurgical industry
imager for the metallurgical industry
Add to favorites
Compare this product


Characteristics

Applications
for the metallurgical industry
Function
thermal, detection
Sensor
focal plane array

Description

With over 60 years of application expertise in the steel industry, AMETEK Land's Slag Detection System (SDS) delivers improved yields, higher-quality steel and reduces costly downstream processing. There are additional benefits in reduced ladle refractory wear. At the end of the tap the levels of slag and steel rapidly reverse. Quick termination of the tap after the alarm has been triggered is necessary to prevent excessive levels of slag in the ladle. SDS uses a high-resolution thermal imaging camera to detect the transition between steel and slag. The dedicated thermal imaging camera has a specific design to survive in the harsh operating conditions and utilizes a particular wavelength to reduce “blackouts” caused by smoke and fume. Data is presented to the operator in real time enabling them to make informed decisions about the tapping process. Suitable for operators of secondary steel making vessels (e.g. EAF, BOF) including stainless steel. Variants of the system are also available for copper, platinum, upon request. The system can also be used to indicate freeboard height if required. IMPROVED PRODUCT QUALITY Using the SDS has been demonstrated to improve operator response time and consistency at the end of each tap. This results in a typical reduction in slag depths of up to 25% compared to traditional methods of stream monitoring. REDUCED DOWNSTREAM PROCESSING COSTS The cost of additional downstream processing time and materials can be a significant burden on an operating plant. By controlling slag carry-over this costly downstream processing can be reduced or eliminated, improving plant throughput and operating margins.
