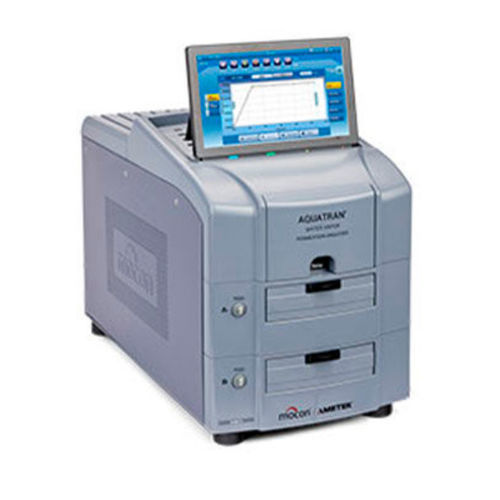

Water vapor transmission rate analyzer AQUATRAN 3/38

for plastic filmlaboratoryautomated

The AQUATRAN-W 3/38 H High Tech WVTR Analyzer with its unique 4 cell capability can test four barrier samples at the same time providing twice the throughput of traditional WVTR instruments. The new dual film horizontal cartridge is removable for easy sample preparation and the user-friendly operator interface provides real time status of testing against target limits. Highest Accuracy MOCON’s Patented Modulated InfraRed sensor is the only modulated sensor system on market meeting ASTM F1249 Low detection levels down to 0.05 g/(m2*day) Fully automated temperature, flow and RH controls simplify testing and provide unparalleled repeatability Best Throughput Industries fastest sensor response time allows shorter overall test times Dual film removable test cartridges allow testing of 4 samples at a time requiring less space Automated test method can start a test by a single press of a button TruSeal gas flushed perimeter sealing can eliminate the need for absolute zero in many tests thus shortening overall test times The AQUATRAN-W 3/38 H high-tech analyzer can test the Water Vapor Transmission Rate (WVTR) on films from low to high barriers. It uses the MOCON’s patented long life modulated IR sensor which is the basis for the ASTM standard F1249. This analyzer provides very accurate and repeatable test results within a wide detection range from 0.05 to 200 g/m2*day.
