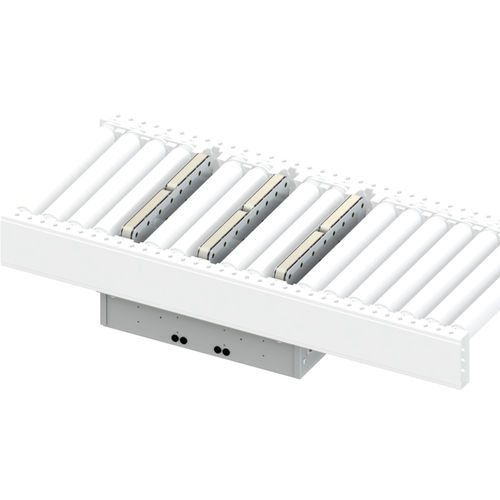

Transfer conveyor RHU24belt
Add to favorites
Compare this product
Characteristics
- Technology
- belt
- Other characteristics
- transfer
- Maximum load
50 kg
(110.231 lb)- Speed
48,000 mm/min, 60,000 mm/min
(31.5 in/s, 39.37 in/s)
Description
Transfer unit RHU24
TECHNICAL DATA
Carrying capacity (max.)
50 kg
Ambient temperature
+5 to +40 °C / Cooling zone available
Installation area
dry operation in enclosed facilities
Width
350 - 850 mm (50 mm increments)
Stroke
20 mm (10 mm above / 10 mm below the conveying height)
Stroke movement
Eccentric stroke
Stroke time
0.4 sec.
Drive power
40 W; Connection for 24 VDC
Speed (max.)
max. 60 m/min at max. 35 kg / max. 48 m/min at max. 50 kg
Frame
Cover: Sheet metal substructure, powdercoated steel**
**others on request
