Asynchronous servomotor Alphathree-phasepermanent magnetIP67
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Configuration
- permanent magnet
- Protection class
- IP67
- Number of poles
- 8-pole
- Applications
- industrial
- Other characteristics
- low-noise, low-vibration
- Power
Max.: 2,000 W
(2.72 hp)Min.: 200 W
(0.27 hp)- Torque
Max.: 9.55 Nm
(7.043719 ft.lb)Min.: 0.64 Nm
(0.47204 ft.lb)- Rotational speed
Max.: 7,000 rpm
(43,982.2972 rad.min-1)Min.: 1,000 rpm
(6,283.1853 rad.min-1)
Description

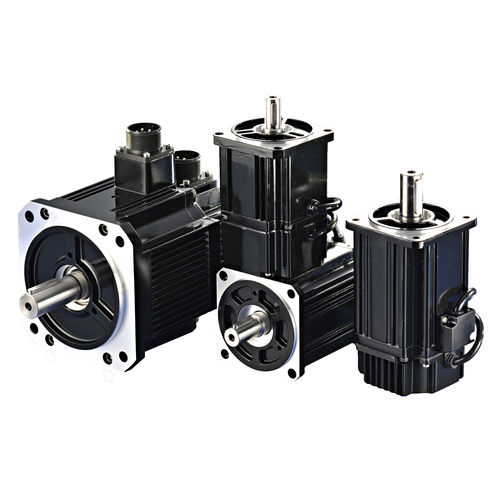

The Alpha motor series deliver noise and vibration free performance at nominal torque in most demanding applications. The Alpha’s motor inertia and electrical performance are designed to suit a wide range of applications and incremental digital encoders are used to ensure compatibility with most industrial servo drives. The Alpha Series is a cost effective solution available in a range of industry standard sizes.
AT A GLANCE
- Permanent magnet AC servo motors from 200W – 2,000W
- Vibration free performance at nominal torque
- Highly Compatible incremental digital encoder
- Fully enclosed frame with IP67 rating
- Very low cogging torques
- Integrated brake option
