Mains power supply connector POWERPOLE® 75 55A

PCBwire-to-boardsilver

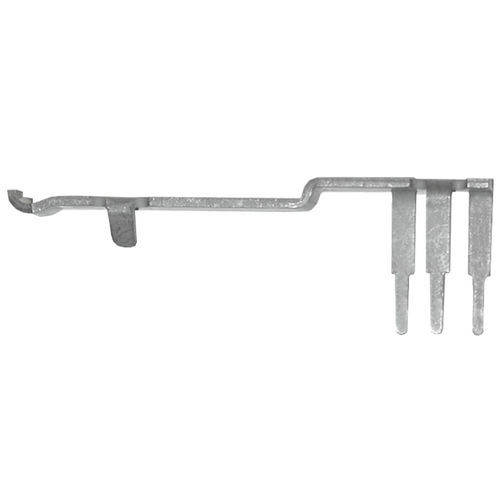

Standard Powerclaw contacts are for use inside a PP75 housing and provide a color coded right angle connection to the PCB, Silver Plated PP75 series Powerpole® housings can be used for wire-to-wire,wire-to-board, and wire-to-busbar applications. Wire sizesfrom #16 AWG (1.3 mm²) to #6 (13.3 mm²) offer power capabilities up to 120 amps per pole. Locking housings offerthe capability to secure Powerpole® housings to each otherand to mounting pads. Housings made from chemical resistant (CR) resin withstand industrial solvents better than standard housings. • Large Wire Range Accommodates up to #6 (10mm²) Wire Reducing bushings allow as small as #16 (1.5 mm²) wire to be used • Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs • Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
