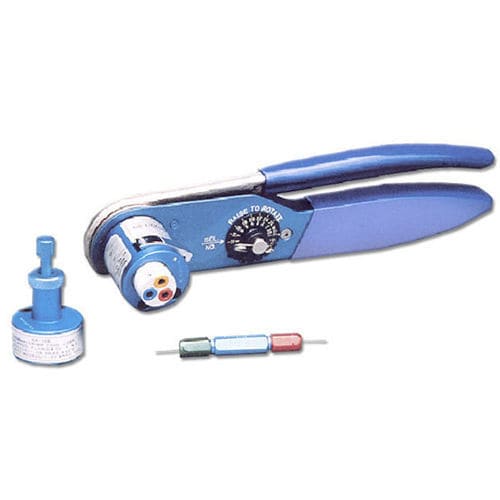

Hand crimping tool POWERMOD®

for wires

Hand Crimp Tool for PowerMod® Contacts Also found in: /PowerMod®/SBS 75X/SPEC Pak HIGH POWER/SPEC Pak Mid Power • Anderson Power Products® TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). • Turret heads are available to crimp both PowerMod® and Power Drawer® Series Contacts. • The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. • The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. • It’s like having a quality control inspector at every work station. • Positive crimp depth is controlled by an 8 position selector knob conveniently located on the tool frame. • The operator simply dials the desired step for the wire being used. • This setting can be secured by use of a locking pin or safety wire. • The carefully engineered design achieves the absolute maximum mechanical advantage; along with the tool’s light weight, operator fatigue is minimized. • Periodic gaging is recommended to insure accurate calibration. • This can be done easily by setting the tool selector knob to position #4, and checking indenter closure with M22520/3-1 “GO-/NO-GO” gage. • Other than keeping the unit clean and properly stored when not in service, no operator maintenance is required. • Complete instructions concerning the use, care and warranty are supplied with each tool.
