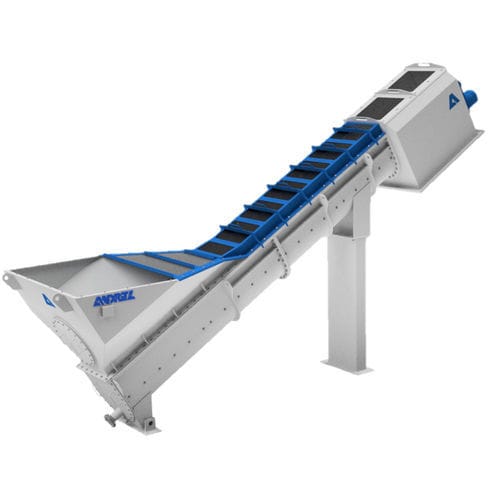

Liquids separator ReSed-X

flowfor the recycling industryinclined

A sediment separator – often also called sand separator – removes sand or other heavy solids from liquids. In a paper mill, those liquids are mainly filtrates from HD cleaners. The principle is quite simple: the feed flow is fed to a sedimentation tank where the heavy particles settle at the bottom; the settled particles are conveyed upwards by an inclined, shaftless screw while being dewatered further; and the dewatered solids drop off at the top of the screw where they are typically collected in a container. The ANDRITZ ReSed-X is a robust sediment separator for drainage of heavy rejects with high volume flows created by pulper junk traps and the like. The entire volume coming from discontinuous junk traps is fed into the vat all at once. The water is drained off efficiently, and heavy rejects are removed by a sturdy, shaftless screw (diameter 600 mm) and brought to a container for further treatment or disposal. Benefits: Sediment Separator ReSed-X Efficient drainage of high volume flows Trouble-free operation for larger debris Low energy consumption High filtrate quality due to optimized drain overflow Low maintenance costs due to simple and robust design (no sealings required)
