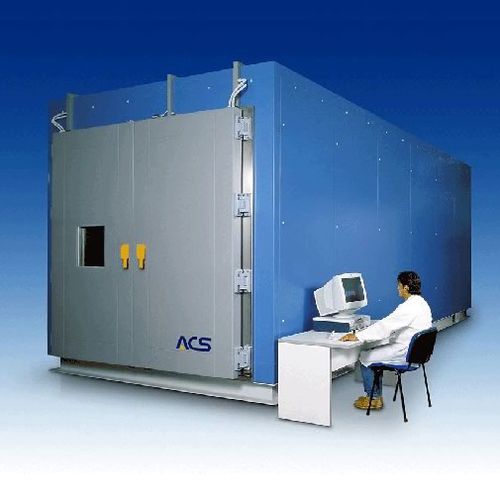

Solar panel test chamber PV3000 - PV4500 - PV8500 SERIES

The new series of chambers for tests on photovoltaic panels satisfy all the needs of a testing laboratory. The main 3 models PV3000, PV4500, PV8500 are dedicated to the Standard Test Methods established by the norms: • IEC 61215, IEC 61646 and IEC 62108 (Photovoltaic Modules) • EN12975-1, EN12975-2 (Thermal Modules) The DH models are basic climatic chambers specifically fit to carry out the simple but long-term Damp Heat Tests required by the Standard Test Methods (85°C/85% RH for 1000 h), so leaving to the the more performing chambers the task of executing the more complex tests. The UV3000 is a specific test chamber to perform the required radiation pre-treatment phase. Other equipment can be provided on request, such as the Hail Test equipment and the Data Acquisition System.
